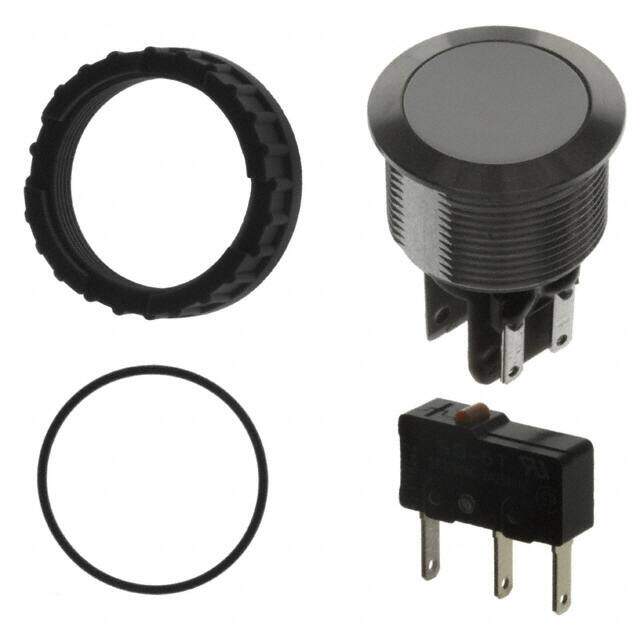

1241.7036.1121000
RoHS
RoHS compliant
RoHS compliantPackage Ceramic
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $40.26
Unit Price: USD $40.26
≥1 USD $40.26
Inventory: 57
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP40, IP65
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 76.2mm
Length 76.2mm
Height 38.1mm
Technical
Illumination Type Illuminated, LED
Operating Force 4.5 N
Contact Current Rating 5A
Mechanical Life 1,500,000 Cycles
Electrical Life 200,000 Cycles
Max Voltage Rating (AC) 250V
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 24VDC
Color - Actuator/Cap Clear (White Filter/Diffuser)
Panel Cutout Dimensions Circular - 22.10mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button, Flush
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.110 (2.8mm)
Current Rating 5A
Ingress Protection IP40
Current Rating (Amps) 5A AC
Color Red
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Obsolete
Feature Ceramic Actuator
Series MSM CS
Packaging Bulk
Operating Temperature -25°C~85°C
Physical
Weight 40.823313g
Housing Material Stainless Steel
Package / Case Ceramic
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Material Silver
