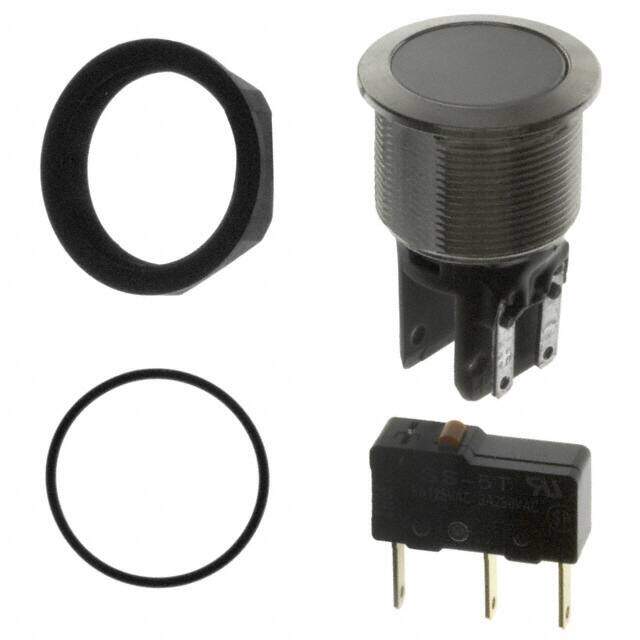

1241.7026.1121000
RoHS
RoHS compliant
RoHS compliantPackage Ceramic
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $38.68
Unit Price: USD $38.6848
≥1 USD $38.6848
Inventory: 37
Minimum: 1
-
+
Technical Details
Physical
Contact Material Silver
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Package / Case Ceramic
Housing Material Stainless Steel
Weight 31.751466g
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Series MSM CS
Feature Ceramic Actuator
Part Status Obsolete
Moisture Sensitivity Level (MSL) Vendor Undefined
Termination Quick Connect
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Number of Positions 2
Color Red
HTS Code 8536.50.70.00
Current Rating (Amps) 5A AC
Packing Method BOX
Ingress Protection IP40
Current Rating 5A
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 19.10mm Dia
Contact Resistance 0.03mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Clear (White Filter/Diffuser)
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Red
Electrical Life 200,000 Cycles
Max Voltage Rating (DC) 30V
Mechanical Life 1,500,000 Cycles
Contact Current Rating 5A
Operating Force 4.5 N
Illumination Type Illuminated, LED
Contact Current(AC)-Max 5A
Actuator Travel 0.9906 mm
Dimensions
Height 25.4mm
Length 76.2mm
Width 76.2mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings IP40, IP65
