1241.6403
RoHS
RoHS compliant
RoHS compliantPackage Metal
Category Switches / Pushbutton Switches
Description

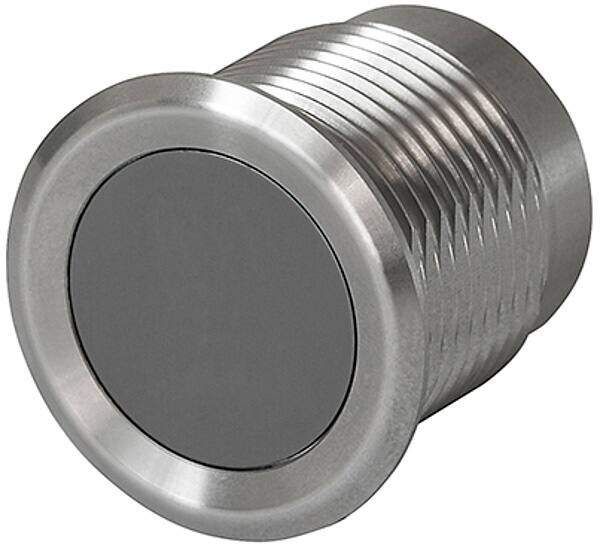

SCHURTER 1241.6403 Illuminated Pushbutton Switch, MCS30 Series, SPST-NO, (On), 80 mA
PDF
/
Buying Options
Total Price: USD $57.35
Unit Price: USD $57.35337
≥1 USD $57.35337
≥10 USD $54.106946
≥100 USD $51.0443
≥500 USD $48.155001
≥1000 USD $45.42924
Inventory: 1162
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Package / Case Metal
Material Stainless Steel
Technical
Operating Temperature -20°C~60°C
Packaging Bulk
Series MCS
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) Vendor Undefined
Termination Wire Leads
ECCN Code EAR99
Type Anti-Vandal, Illuminated
Number of Positions 2
Color Red
HTS Code 8536.50.90.31
Voltage - Rated DC 48V
Current Rating (Amps) 125mA DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Depth 33.75mm
Current Rating 125mA
Termination Style Wire Leads
Approval Agency CE
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 30.30mm Dia
Contact Resistance 0.15mOhm
Insulation Resistance 100MOhm
Color - Actuator/Cap Silver
Illumination Voltage (Nominal) 24VDC
Illumination Type, Color LED, Red/Green
Sealing IK05; IP65
Max Current Rating 125mA
Electrical Life 1,000,000 Cycles
Throw Configuration SPDT, SPST
Max Voltage Rating (DC) 48V
Mechanical Life 1,000,000 Cycles
Contact Current Rating 125mA
Illumination Type Illuminated, LED
Illumination Color Green, Red
Contact Function N.O.-N.C.
Operating Force-Max 3.7 N
Bushing Diameter 1.181 inch
Dimensions
Length 33.75mm
Thickness 33.6mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
