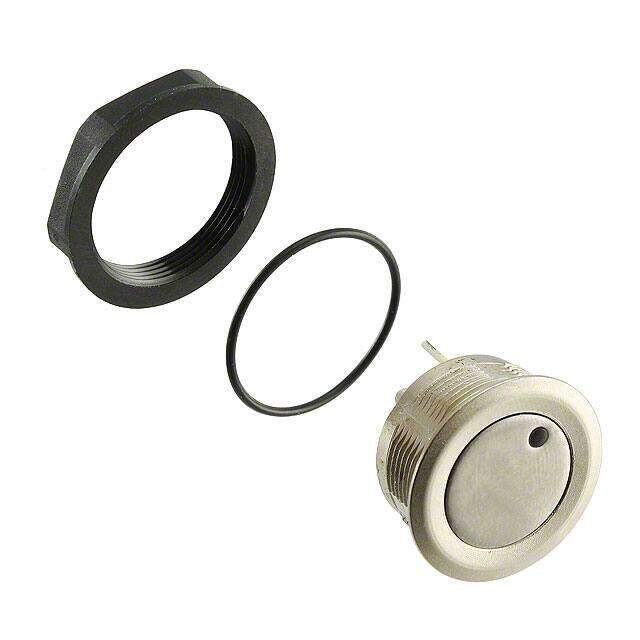

1241.2856.071
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 125MA 48V
PDF
/
Inventory: 4063
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 0.039 inch
Length - Termination 0.22 inch
Technical
Bushing Diameter 0.748 inch
Contact (DC) Max Power Rating R Load 0.72VA@48VDC
Bushing Length 0.346 inch
Contact Function N.O.-N.C.
Contact (DC) Max Rating R Load 0.125A@48VDC
Illumination Type LED
Mechanical Life 1,000,000 Cycles
Throw Configuration SPST
Electrical Life 1,000,000 Cycles
Illumination Type, Color LED, Green
Illumination Voltage (Nominal) 2.1VDC
Contact Current(DC)-Max 0.125A
Color - Actuator/Cap Silver
Insulation Resistance 100000000Ohm
Contact Resistance 0.15mOhm
Panel Cutout Dimensions Circular - 19.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Flush
Termination Style Solder Lug
Current Rating 125mA
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 125mA DC
Voltage - Rated DC 48V
Terminal Finish Matte Tin (Sn)
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Obsolete
Pbfree Code yes
Feature Tactile Feedback
JESD-609 Code e3
Series MCS
Packaging Tray
Operating Temperature -25°C~60°C
Physical
Actuator Material STAINLESS STEEL
Weight 99.988768mg
Housing Material STAINLESS STEEL
Mounting Type Panel Mount, Front
Mount Front, Panel
