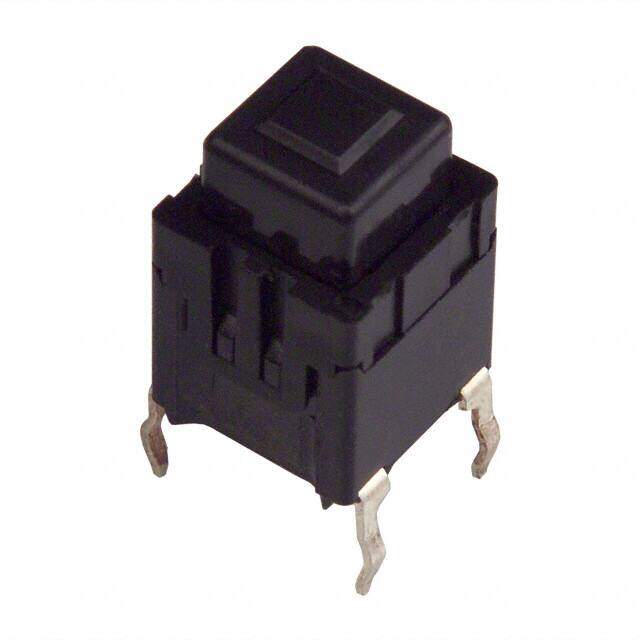

ESE-20D341
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Electromechanical Switch Push Switch SPST 0.1A Bulk
PDF
/
Buying Options
Total Price: USD $1.19
Unit Price: USD $1.188
≥1 USD $1.188
≥10 USD $1.0692
≥100 USD $1.012704
≥500 USD $0.965184
≥1000 USD $0.917928
≥3000 USD $0.88007
Inventory: 1297
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Body Height 8.9mm
Width 7.8mm
Length 7.9mm
Technical
Contact (DC) Max Rating R Load .1A@14VDC
Operating Force 4 N
Throw Configuration SPST
Contact Current(DC)-Max 0.1A
Color - Actuator/Cap Black
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Termination Style PC Pin
Current Rating 100mA
Orientation Vertical
Packing Method BAG; BOX
Current Rating (Amps) 100mA DC
Voltage - Rated DC 14V
HTS Code 8536.50.90.31
Terminal Finish Tin/Copper (Sn/Cu)
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e2
Series ESE20D
Published 2011
Packaging Bulk
Physical
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 8 Weeks
