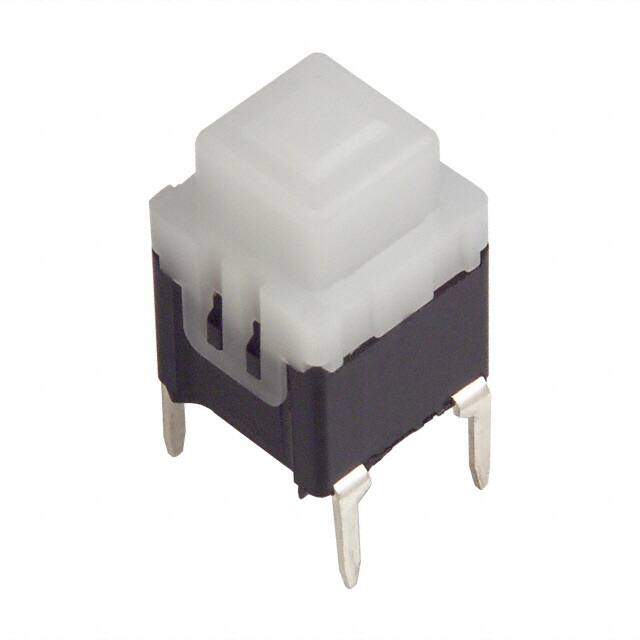

ESE-20C323
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Switch Push Button ON OFF SPST Square Plunger 0.1A 14VDC Momentary Contact PC Pins Thru-Hole Bulk
PDF
/
Buying Options
Total Price: USD $1.22
Unit Price: USD $1.2232
≥1 USD $1.2232
≥10 USD $1.09736
≥100 USD $0.941952
≥500 USD $0.801178
Inventory: 1112
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount PCB, Through Hole
Mounting Type Through Hole
Technical
Packaging Bulk
Published 2011
Series ESE20C
JESD-609 Code e2
Feature Tactile Feedback
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Standard
Terminal Finish Tin/Copper (Sn/Cu)
Max Operating Temperature 80°C
Min Operating Temperature -30°C
HTS Code 8536.50.90.31
Voltage - Rated DC 14V
Current Rating (Amps) 100mA DC
Packing Method BAG; BOX
Orientation Straight
Current Rating 100mA
Termination Style PC Pin
Body Length or Diameter 7.9mm
Body Breadth 7.8 mm
Actuator Type Square, Button
Circuit SPST-NO
Switch Function Off-Mom
Color - Actuator/Cap White
Contact Current(DC)-Max 0.1A
Throw Configuration SPST
Max Voltage Rating (DC) 14V
Contact Current Rating 100mA
Operating Force 4 N
Contact (DC) Max Rating R Load .1A@14VDC
Dimensions
Body Height 8.9mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
