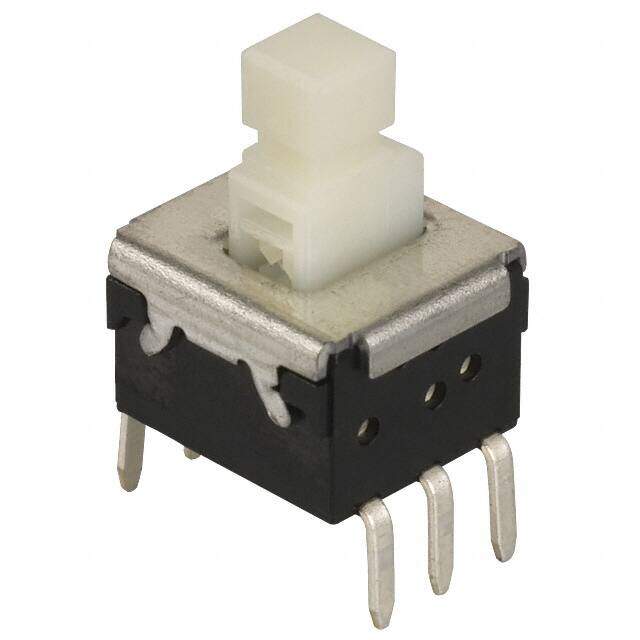

ESB-33133 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSH DPDT 0.2A 14V
PDF
/
Buying Options
Total Price: USD $0.94
Unit Price: USD $0.9416
≥1 USD $0.9416
≥10 USD $0.8448
≥100 USD $0.799392
≥500 USD $0.76142
≥1000 USD $0.72732
≥3000 USD $0.693246
Inventory: 1342
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Body Height 6mm
Width 10mm
Length 10mm

Technical

Operating Force-Max 4 N
Contact (DC) Max Rating R Load .2A@14VDC
Contact Current Rating 200mA
Contact Current(DC)-Max 0.2A
Color - Actuator/Cap White
Switch Function On-On
Circuit DPDT
Actuator Type Plunger for Cap
Body Breadth 9.85 mm
Termination Style PC Pin
Current Rating 200mA
Orientation Vertical
Packing Method BAG
Current Rating (Amps) 200mA DC
Voltage - Rated DC 14V
HTS Code 8536.50.90.31
Additional Feature LOW PROFILE
Min Operating Temperature -30°C
Max Operating Temperature 80°C
Terminal Finish Tin (Sn)
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series ESB33
Published 2011
Packaging Bulk

Physical

Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver

Supply Chain

Factory Lead Time 14 Weeks
