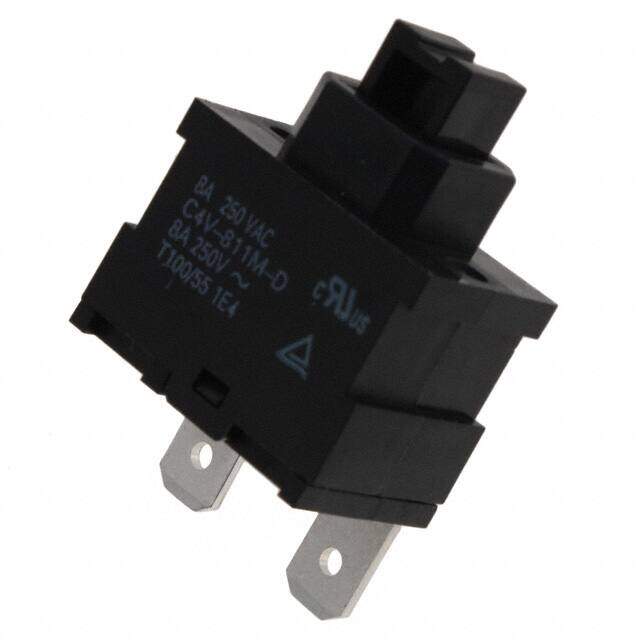

C4V-811M-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 8A 125V
PDF
/
Buying Options
Total Price: USD $3.63
Unit Price: USD $3.6344
≥1 USD $3.6344
≥10 USD $3.24896
≥100 USD $3.077536
≥500 USD $2.96868
≥1000 USD $2.81336
≥3000 USD $2.68899
Inventory: 96
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Actuator Length 4.5mm
Width 13mm
Length 19mm
Height 24mm
Technical
Life (Cycles) 10000 cycles
Contact (AC) Max Rating R Load 8A@250VAC
Contact Current(AC)-Max 8A
Operating Force 7 N
Mechanical Life 10,000 Cycles
Throw Configuration SPST
Electrical Life 10,000 Cycles
Max Voltage Rating (AC) 250V
Contact Resistance 50mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Plunger
Voltage - Rated AC 125V
Termination Style Quick Connect - 0.187 (4.7mm)
Current Rating 8A
Depth 13mm
Orientation Straight
Current Rating (Amps) 8A AC
HTS Code 8536.50.70.00
Type Standard
ECCN Code EAR99
Termination Quick Connect
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series C4V
Published 2010
Packaging Tray
Operating Temperature -10°C~55°C
Physical
Mounting Type Panel Mount, Side
Mount Panel
Supply Chain
Factory Lead Time 13 Weeks
