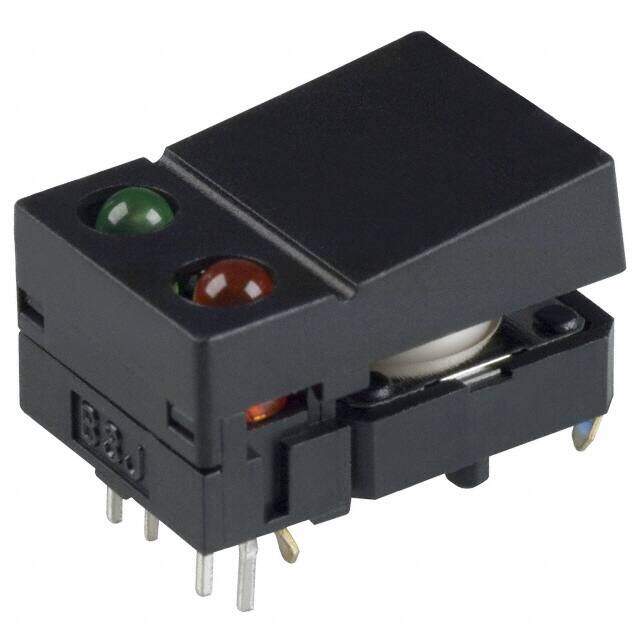

B3J-6400
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
OMRON ELECTRONIC COMPONENTS B3J6400Tactile Switch, Non Illuminated, 1.27 N, 24 V, 50 mA, Solder
PDF
/
Buying Options
Total Price: USD $3.6
Unit Price: USD $3.5992
≥1 USD $3.5992
≥10 USD $3.24544
≥100 USD $3.082816
≥500 USD $2.953104
≥1000 USD $2.856568
Inventory: 303
Minimum: 1
-
+
Technical Details
Technical
Illumination Voltage (Nominal) 2.0 2.1VDC
Contact Current(DC)-Max 0.05A
Color - Actuator/Cap Blue
Contact Resistance 100mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Body Breadth 12 mm
Termination Style PC Pin
Current Rating 50mA
Depth 19.6mm
Orientation Straight
Current Rating (Amps) 50mA DC
Voltage - Rated DC 24V
HTS Code 8536.50.70.00
Type Keyswitch, Illuminated
ECCN Code EAR99
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series B3J
Published 2003
Packaging Bulk
Operating Temperature -25°C~70°C
Pre-Travel-Max 0.3 mm
Actuator Travel 0.3 mm
Contact (DC) Max Rating R Load .05A@24VDC
Illumination Color Green, Red
Illumination Type Illuminated, LED
Operating Force 1.27 N
Contact Current Rating 50mA
Mechanical Life 3,000,000 Cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Electrical Life 3,000,000 Cycles
Max Current Rating 50mA
Illumination Type, Color LED, Red/Green
Physical
Weight 1.7g
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Actuator Length 6.8mm
Body Height 3.5mm
Length 13.6mm
