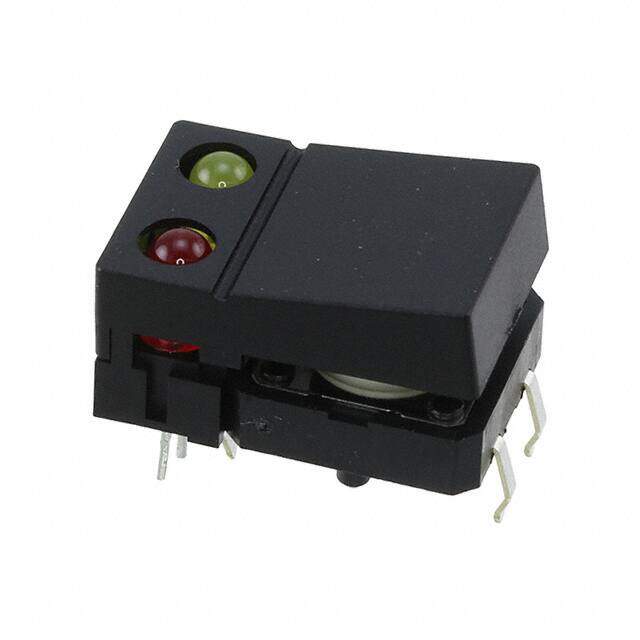

B3J-5400
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH, HINGED, BLUE, RED & YLW LED
PDF
/
Buying Options
Total Price: USD $5.12
Unit Price: USD $5.1216
≥1 USD $5.1216
≥10 USD $4.61648
≥100 USD $3.854576
≥500 USD $3.392946
Inventory: 57
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Actuator Length 6.8mm
Body Height 3.5mm
Technical
Pre-Travel-Max 0.3 mm
Actuator Travel 0.3 mm
Contact (DC) Max Rating R Load .05A@24VDC
Illumination Color Red, Yellow
Illumination Type Illuminated, LED
Operating Force 1.27 N
Contact Current Rating 50mA
Mechanical Life 3,000,000 Cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Electrical Life 3,000,000 Cycles
Illumination Type, Color LED, Red/Yellow
Illumination Voltage (Nominal) 2VDC
Contact Current(DC)-Max 0.05A
Color - Actuator/Cap Blue
Contact Resistance 100mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Body Breadth 12 mm
Body Length or Diameter 18mm
Termination Style PC Pin
Current Rating 50mA
Orientation Straight
Current Rating (Amps) 50mA DC
Voltage - Rated DC 24V
HTS Code 8536.50.70.00
Color Red, Yellow
Type Keyswitch, Illuminated
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series B3J
Published 2003
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Weight 1.7g
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 12 Weeks
