B3J-5000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

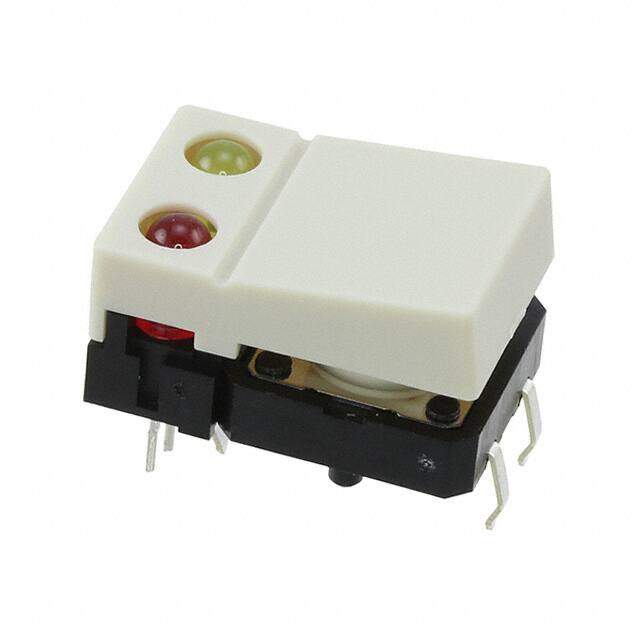

OMRON ELECTRONIC COMPONENTS B3J5000 SWITCH, HINGED, GREY, RED & YLW LED
PDF
/
Buying Options
Total Price: USD $3.6
Unit Price: USD $3.5992
≥1 USD $3.5992
≥10 USD $3.24544
≥100 USD $3.082816
≥500 USD $2.953104
≥1000 USD $2.856568
Inventory: 91
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Weight 1.7g
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2003
Series B3J
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
ECCN Code EAR99
Type Keyswitch, Illuminated
HTS Code 8536.50.70.00
Voltage - Rated DC 24V
Current Rating (Amps) 50mA DC
Orientation Straight
Current Rating 50mA
Termination Style PC Pin
Body Length or Diameter 18mm
Body Breadth 12 mm
Actuator Type Square, Button
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 100mOhm
Color - Actuator/Cap Gray, Light
Contact Current(DC)-Max 0.05A
Illumination Voltage (Nominal) 2VDC
Illumination Type, Color LED, Red/Yellow
Electrical Life 3,000,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 24V
Mechanical Life 3,000,000 Cycles
Contact Current Rating 50mA
Operating Force 1.27 N
Illumination Type Illuminated, LED
Illumination Color Red, Yellow
Contact (DC) Max Rating R Load .05A@24VDC
Actuator Travel 0.3 mm
Pre-Travel-Max 0.3 mm
Dimensions
Body Height 3.5mm
Actuator Length 6.8mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
