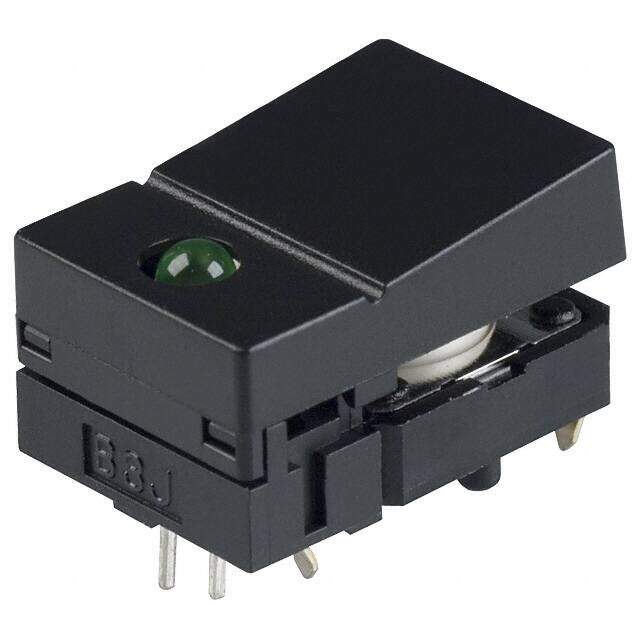

B3J-4500
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.05A 24V
PDF
/
Buying Options
Total Price: USD $3.65
Unit Price: USD $3.652
≥1 USD $3.652
≥10 USD $3.2604
≥100 USD $2.698986
≥500 USD $2.371362
Inventory: 368
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Silver
Mount Through Hole
Mounting Type Through Hole
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2003
Series B3J
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Keyswitch, Illuminated
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Voltage - Rated DC 24V
Current Rating (Amps) 50mA DC
Current Rating 50mA
Termination Style PC Pin
Actuator Type Square, Button
Circuit SPST-NO
Switch Function Off-Mom
Color - Actuator/Cap Green
Illumination Voltage (Nominal) 2.1VDC
Illumination Type, Color LED, Green
Electrical Life 3,000,000 Cycles
Throw Configuration SPST
Mechanical Life 3,000,000 Cycles
Operating Force 1.3 N
Illumination Type LED
Illumination Color Green
Compliance
RoHS Status RoHS Compliant
