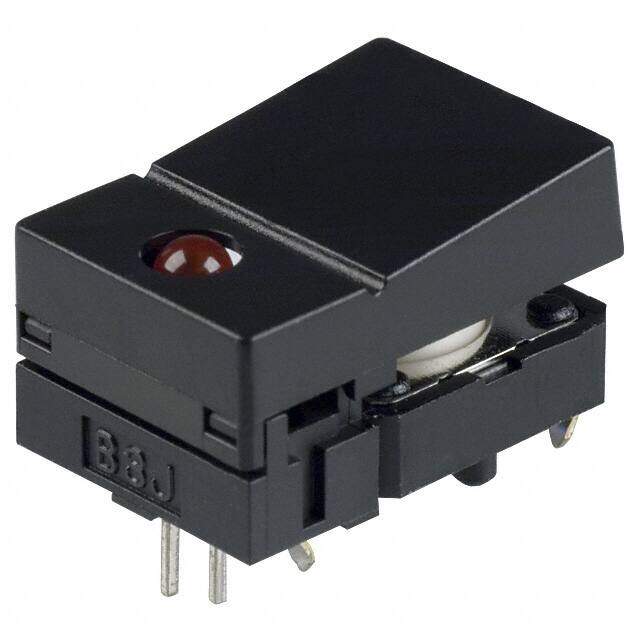

B3J-2100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
OMRON ELECTRONIC COMPONENTS B3J-2100Tactile Switch, Non Illuminated, 1.27 N, 24 V, 50 mA, B3J Series
PDF
/
Buying Options
Total Price: USD $3.65
Unit Price: USD $3.652
≥1 USD $3.652
≥10 USD $3.26216
≥100 USD $2.700218
≥500 USD $2.372454
Inventory: 92
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Weight 1.500002g
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2003
Series B3J
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pin
ECCN Code EAR99
Type Keyswitch, Illuminated
HTS Code 8536.50.70.00
Voltage - Rated DC 24V
Current Rating (Amps) 50mA DC
Orientation Straight
Current Rating 50mA
Termination Style PC Pin
Body Length or Diameter 18mm
Actuator Type Square, Button
Circuit SPST-NO
Switch Function Off-Mom
Contact Resistance 100mOhm
Insulation Resistance 100MOhm
Color - Actuator/Cap Black
Contact Current(DC)-Max 0.05A
Illumination Voltage (Nominal) 2VDC
Illumination Type, Color LED, Red
Electrical Life 3,000,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 24V
Mechanical Life 3,000,000 Cycles
Contact Current Rating 50mA
Operating Force 1.27 N
Illumination Type Illuminated, LED
Illumination Color Red
Contact (DC) Max Rating R Load .05A@24VDC
Actuator Travel 0.3 mm
Pre-Travel-Max 0.3 mm
Dimensions
Width 12mm
Body Height 3.5mm
Actuator Length 6.8mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
