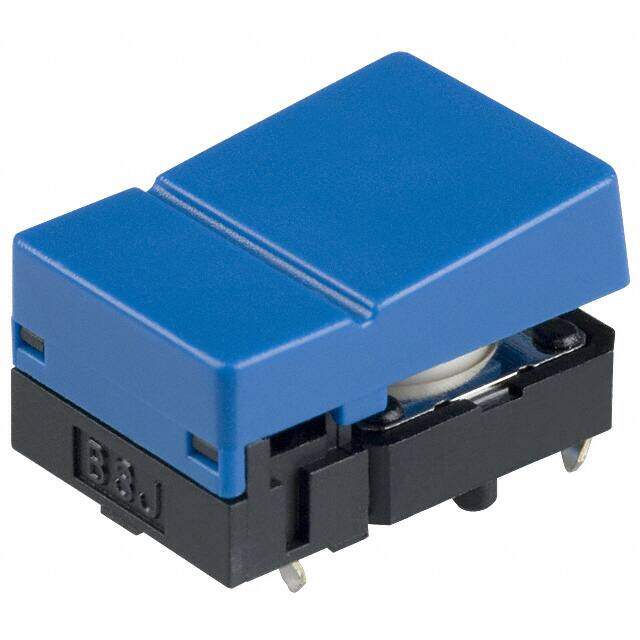

B3J-1400
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
OMRON ELECTRONIC COMPONENTS B3J1400SWITCH, HINGED, SPST, BLUE
PDF
/
Buying Options
Total Price: USD $2.14
Unit Price: USD $2.1384
≥1 USD $2.1384
≥10 USD $1.91752
≥100 USD $1.575842
≥500 USD $1.391993
Inventory: 47
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Actuator Length 6.8mm
Body Height 3.5mm
Technical
Pre-Travel-Max 0.3 mm
Actuator Travel 0.3 mm
Contact (DC) Max Rating R Load .05A@24VDC
Illumination Type Illuminated
Operating Force 1.27 N
Contact Current Rating 50mA
Mechanical Life 3,000,000 Cycles
Max Voltage Rating (DC) 24V
Throw Configuration SPST
Electrical Life 3,000,000 Cycles
Contact Current(DC)-Max 0.05A
Color - Actuator/Cap Blue
Contact Resistance 100mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Square, Button
Body Breadth 12 mm
Body Length or Diameter 18mm
Termination Style PC Pin
Current Rating 50mA
Orientation Straight
Current Rating (Amps) 50mA DC
Voltage - Rated DC 24V
HTS Code 8536.50.70.00
Type Keyswitch
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
Series B3J
Published 2003
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Weight 1.7g
Mounting Type Through Hole
Mount Through Hole
Contact Plating Silver
Supply Chain
Factory Lead Time 11 Weeks
