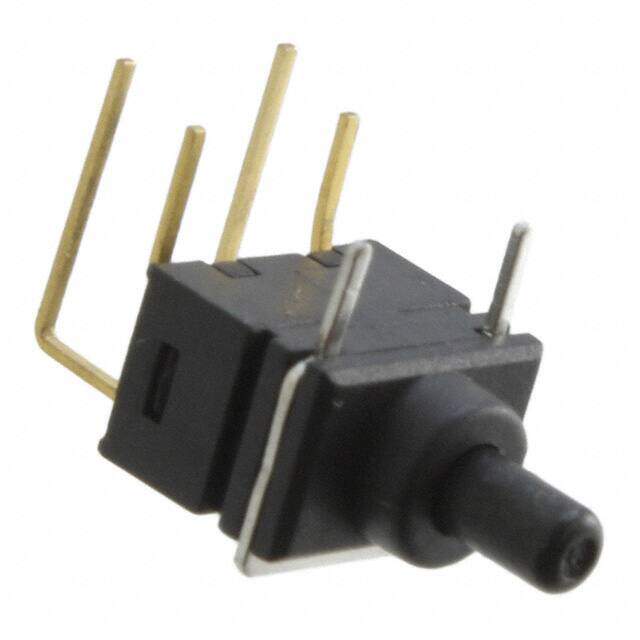

A9PS26-0012
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches Ultra Subminiature RA Terminal, DPST
PDF
/
Buying Options
Total Price: USD $7.61
Unit Price: USD $7.607311
≥1 USD $7.607311
≥10 USD $7.176708
≥100 USD $6.770477
≥500 USD $6.387242
≥1000 USD $6.0257
Inventory: 1630
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP64, Water Resistant
RoHS Status RoHS Compliant
Dimensions
Actuator Length 3.3mm
Length - Termination 0.102 inch
Body Height 5mm
Technical
Operating Force-Max 4.9 N
Bushing Length 0.062 inch
Contact Function OFF-(ON)
Contact (DC) Max Rating R Load .1A@28VDC
Contact (AC) Max Rating R Load .1A@28VAC
Contact Current(AC)-Max 0.1A
Illumination Type Illuminated
Mechanical Life 50,000 Cycles
Max Voltage Rating (DC) 28V
Throw Configuration DPDT, DPST
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 500VAC V
Max Voltage Rating (AC) 28V
Contact Current(DC)-Max 0.1A
Insulation Resistance 500000000Ohm
Contact Resistance 80mOhm
Switch Function Off-Mom
Circuit DPST-NO
Actuator Type Plunger for Cap
Body Breadth 5.6 mm
Body Length or Diameter 7mm
Voltage - Rated AC 28V
Termination Style PC Pin
Current Rating 100mA
Reach Compliance Code unknown
Ingress Protection IP64 - Dust Tight, Water Resistant
Orientation Right Angle
Packing Method TRAY
Current Rating (Amps) 100mA AC/DC
Voltage - Rated DC 28V
HTS Code 8536.50.90.31
Type Standard
ECCN Code EAR99
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Sealed - Flux Protection
Series A9PS
Published 2002
Packaging Bulk
Operating Temperature -20°C~80°C
Physical
Weight 300mg
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 22 Weeks
