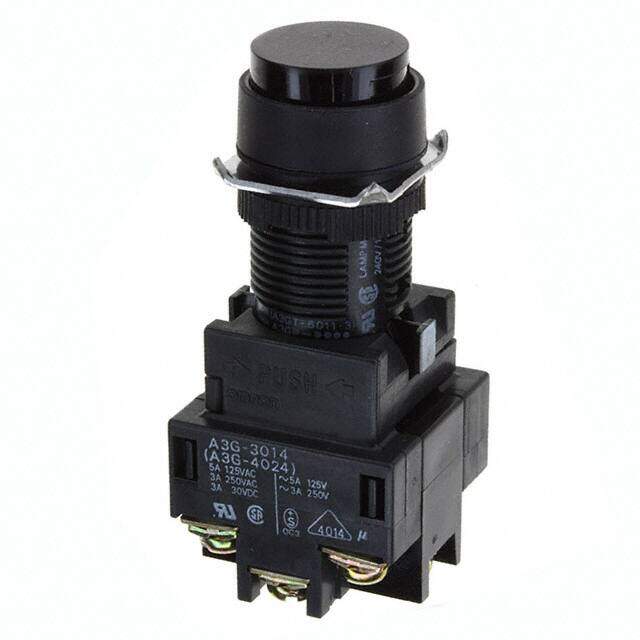

A3GT-99C0-B
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 5A 125V
PDF
/
Inventory: 7564
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Actuator Length 0.647 inch
Body Height 26.289mm
Technical
Bushing Length 0.673 inch
Contact Function (N.O.) (N.C.)
Contact Voltage(AC)-Max 250V
Contact (DC) Max Rating R Load 0.025A@25VDC
Contact Timing BREAK-BEFORE-MAKE
Contact (AC) Max Rating R Load 3A@250VAC
Contact Current(AC)-Max 3A
Mechanical Life 1,000,000 Cycles
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 2000VAC V
Contact Current(DC)-Max 0.025A
Color - Actuator/Cap Black
Insulation Resistance 100000000Ohm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Round, Button
Body Breadth 24.003 mm
Body Length or Diameter 24.003mm
Voltage - Rated AC 125V
Termination Style Screw Terminal
Current Rating 3A
Reach Compliance Code unknown
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Current Rating (Amps) 5A AC 3A DC
Voltage - Rated DC 30V
Additional Feature ROUND ACTUATOR
Type Standard
Termination Screw
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Series A3G
Published 1998
Packaging Bulk
Operating Temperature -10°C~55°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
