RoHS
/
Package /
Category Switches / Pushbutton Switches
Description

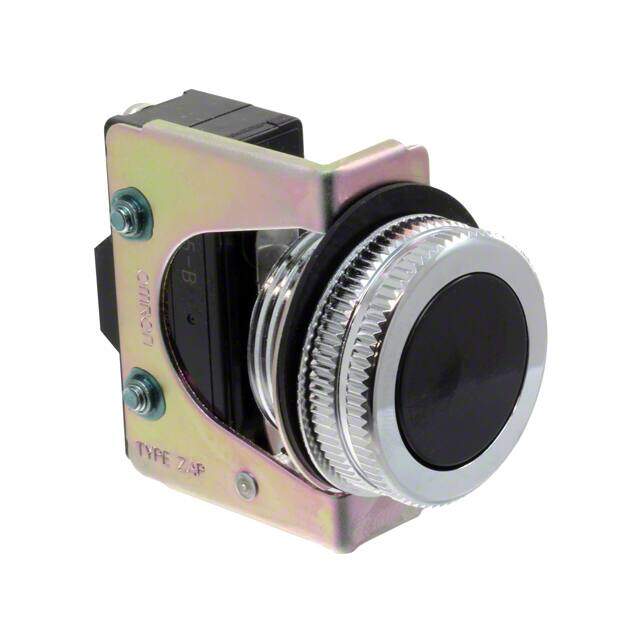

SWITCH PUSHBUTTON SPDT 15A 125V
PDF
/
Buying Options
Total Price: USD $24.11
Unit Price: USD $24.112
≥1 USD $24.112
≥10 USD $21.8944
≥100 USD $19.065464
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mounting Type Panel Mount, Rear
Surface Mount NO
Technical
Operating Temperature -25°C~80°C
Packaging Bulk
Published 2012
Series ZAP
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.35
Voltage - Rated DC 30V
Current Rating (Amps) 15A AC 6A DC
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Reach Compliance Code unknown
Termination Style Screw Terminal
Voltage - Rated AC 125V
Body Length or Diameter 52mm
Body Breadth 19 mm
Actuator Type Round, Button, Flush
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 30.50mm Dia
Color - Actuator/Cap Black
Contact Current(DC)-Max 15A
Contact Voltage(DC)-Max 8V
Electrical Life 500,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Current(AC)-Max 15A
Contact (AC) Max Rating R Load 15A@200VAC
Contact (DC) Max Rating R Load 15A@8VDC
Contact Voltage(AC)-Max 200V
Operating Force-Max 9.81 N
Dimensions
Body Height 51.8mm
Compliance
RoHS Status Non-RoHS Compliant
