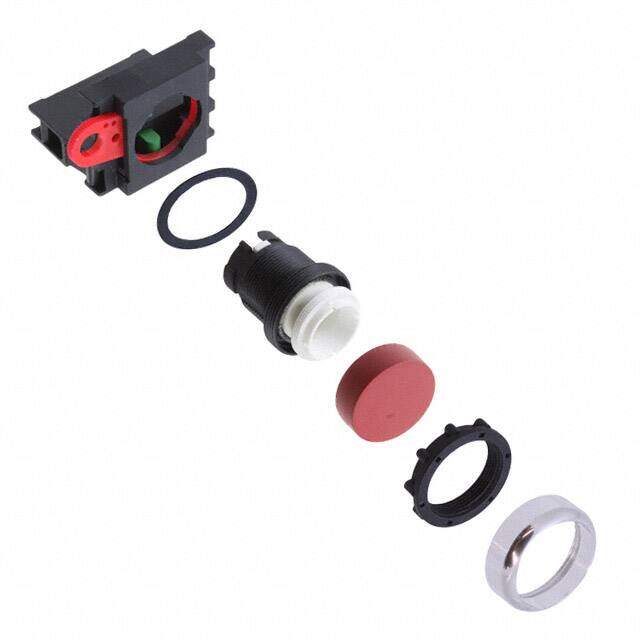

A22R-TR-10A
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 10A 120V
PDF
/
Inventory: 7552
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Number of Pins 2
Technical
Operating Temperature -20°C~60°C
Packaging Bulk
Published 2009
Series A22R
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Type Standard
Max Operating Temperature 60°C
Min Operating Temperature -20°C
Voltage - Rated DC 24V
Current Rating (Amps) 10A AC
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Current Rating 10A
Termination Style Screw Terminal
Voltage - Rated AC 120V
Approval Agency UL
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-On
Panel Cutout Dimensions Circular - 22.30mm Dia
Color - Actuator/Cap Red
Electrical Life 500,000 Cycles
Throw Configuration SPST
Mechanical Life 300,000 Cycles
Life (Cycles) 300000 cycles
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Ratings Dust Tight, IP65, Water Resistant
