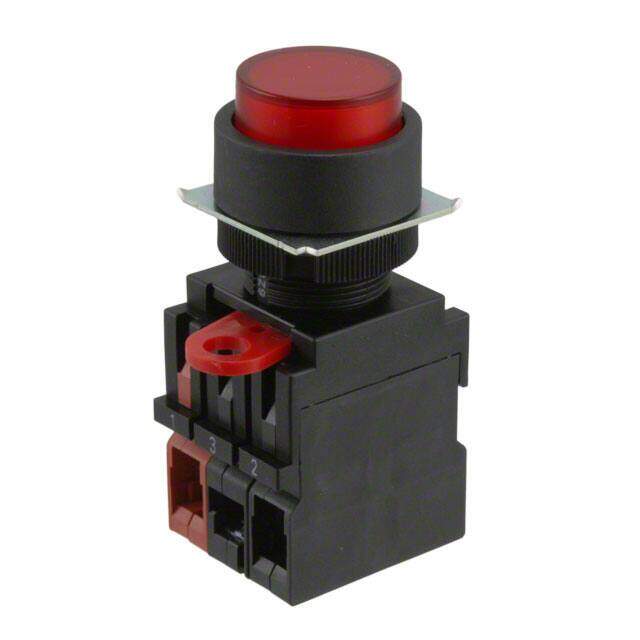

A22L-TR-24-02M
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPST-NC 10A 110V
PDF
/
Inventory: 4952
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Mechanical Life 5,000,000 Cycles
Throw Configuration DPST
Electrical Life 500,000 Cycles
Illumination Type, Color Incandescent, Red
Illumination Voltage (Nominal) 24VAC/DC
Color - Actuator/Cap Red
Panel Cutout Dimensions Circular - 22.30mm Dia
Switch Function On-Mom
Circuit DPST-NC
Actuator Type Round, Button
Voltage - Rated AC 110V
Termination Style Screw Terminal
Current Rating 10A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 10A AC/DC
Voltage - Rated DC 24V
Min Operating Temperature -20°C
Max Operating Temperature 55°C
Type Standard, Illuminated
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series A22
Published 1998
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
