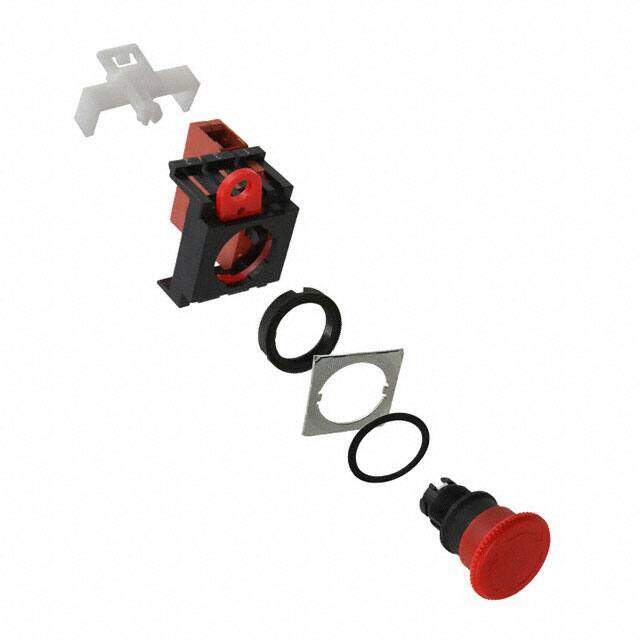

A22E-S-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH, EMERGENCY STOP,NON-LIGHTED,PUSH-LOCK,TURN RESET,30 DIA. HEAD
PDF
/
Buying Options
Total Price: USD $53.62
Unit Price: USD $53.6184
≥1 USD $53.6184
≥10 USD $45.77144
≥100 USD $37.270904
Inventory: 120
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2009
Series A22E
Feature Push-Lock, Turn-Reset
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Emergency Stop
Number of Positions 2
HTS Code 8536.50.90.35
Voltage - Rated DC 24V
Current Rating (Amps) 10A AC/DC
Orientation Vertical
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Reach Compliance Code unknown
Current Rating 10A
Termination Style Screw Terminal
Voltage - Rated AC 110V
Actuator Type Round, Button, Mushroom
Circuit SPST-NC
Switch Function On-Off
Panel Cutout Dimensions Circular - 22.30mm Dia
Color - Actuator/Cap Red
Electrical Life 300,000 Cycles
Throw Configuration SPST
Mechanical Life 300,000 Cycles
Life (Cycles) 300000 cycles
Dimensions
Body Height 34mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
