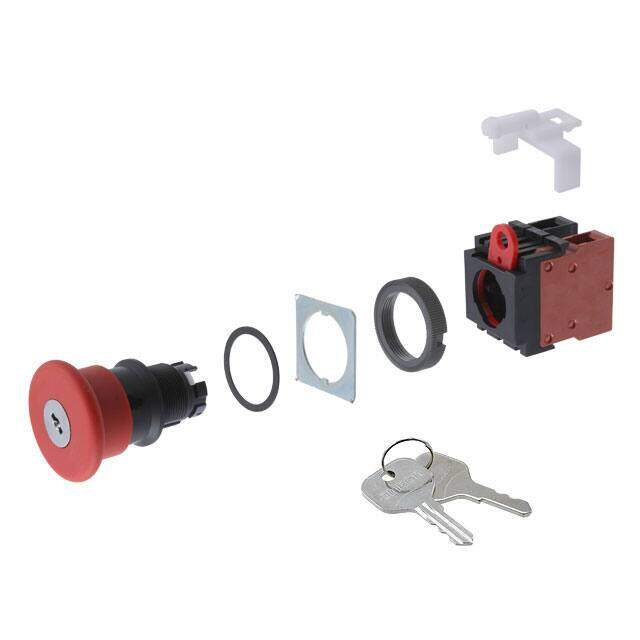

A22E-MK-11
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH, EMERGENCY STOP,NON-LIGHTED,PUSH-LOCK,KEY RESET,40 DIA. HEAD, 1NC+1NO C
PDF
/
Inventory: 3529
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2009
Series A22E
Feature Push-Lock, Key-Reset
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Emergency Stop
HTS Code 8536.50.90.35
Voltage - Rated DC 24V
Current Rating (Amps) 10A AC/DC
Orientation Vertical
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Reach Compliance Code unknown
Current Rating 10A
Termination Style Screw Terminal
Voltage - Rated AC 110V
Body Length or Diameter 41.2mm
Actuator Type Round, Button, Mushroom
Circuit DPST-NO/NC
Switch Function On-Off, Off-On
Panel Cutout Dimensions Circular - 22.30mm Dia
Color - Actuator/Cap Red
Max Current Rating 10A
Electrical Life 300,000 Cycles
Throw Configuration DPST, SPST
Mechanical Life 300,000 Cycles
Contact Current Rating 24A
Dimensions
Body Height 34mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
