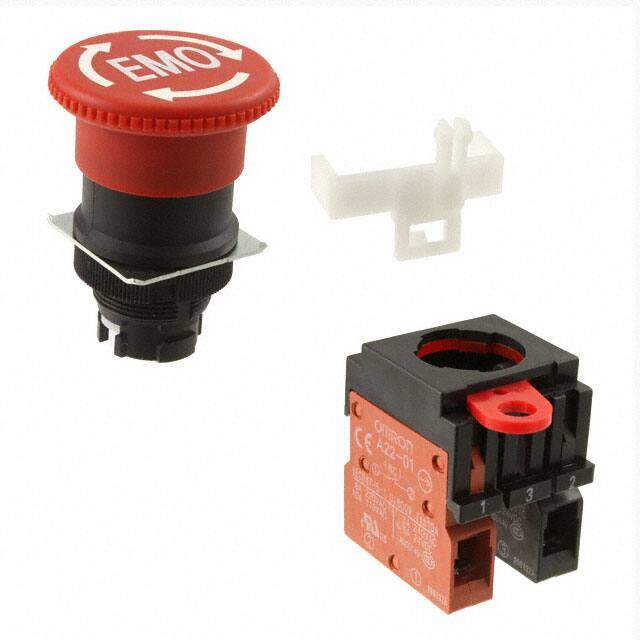

A22E-M-11-EMO
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPST 10A 110V
PDF
/
Buying Options
Total Price: USD $82.15
Unit Price: USD $82.148
≥1 USD $82.148
≥10 USD $81.01984
≥100 USD $75.39312
≥500 USD $70.892096
≥1000 USD $65.265904
≥3000 USD $58.608
Inventory: 79
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 2009
Series A22E
Feature EMO Indication, Push-Lock, Turn-Reset
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Emergency Stop
HTS Code 8536.50.90.35
Voltage - Rated DC 24V
Current Rating (Amps) 10A AC/DC
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Reach Compliance Code unknown
Current Rating 10A
Termination Style Screw Terminal
Voltage - Rated AC 110V
Body Length or Diameter 41.2mm
Actuator Type Round, Button, Mushroom
Circuit DPST-NO/NC
Switch Function On-Off, Off-On
Panel Cutout Dimensions Circular - 22.30mm Dia
Color - Actuator/Cap Red
Electrical Life 300,000 Cycles
Throw Configuration DPST
Mechanical Life 300,000 Cycles
Dimensions
Body Height 34mm
Compliance
RoHS Status Non-RoHS Compliant
Ratings Dust Tight, IP65, Water Resistant
