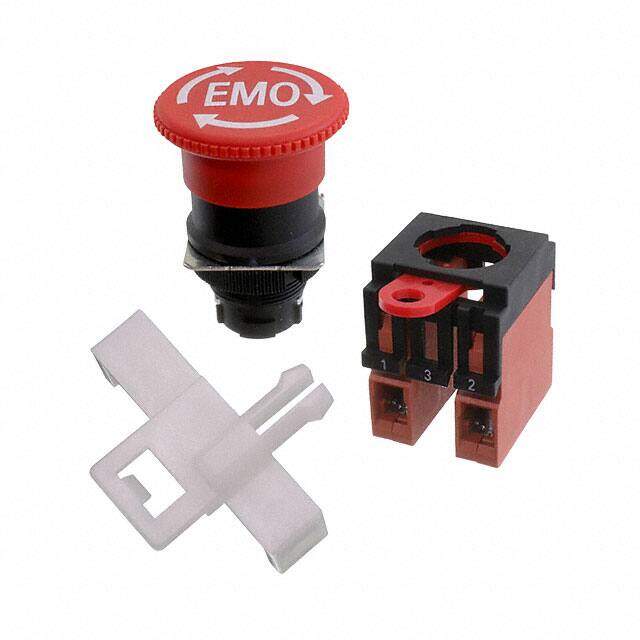

A22E-M-02-EMO
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPST-NC 10A 110V
PDF
/
Buying Options
Total Price: USD $78.81
Unit Price: USD $78.8128
≥1 USD $78.8128
≥10 USD $77.73568
≥100 USD $72.33688
≥500 USD $68.018368
≥1000 USD $62.61992
≥3000 USD $56.232
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 2 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Series A22E
Feature EMO Indication, Push-Lock, Turn-Reset
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Emergency Stop
HTS Code 8536.50.90.35
Voltage - Rated DC 24V
Current Rating (Amps) 10A AC/DC
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Reach Compliance Code unknown
Current Rating 10A
Termination Style Screw Terminal
Voltage - Rated AC 110V
Body Length or Diameter 41.2mm
Actuator Type Round, Button, Mushroom
Circuit DPST-NC
Switch Function On-Off
Panel Cutout Dimensions Circular - 22.30mm Dia
Color - Actuator/Cap Red
Electrical Life 300,000 Cycles
Throw Configuration DPST
Mechanical Life 300,000 Cycles
Dimensions
Body Height 34mm
Compliance
RoHS Status Non-RoHS Compliant
Ratings Dust Tight, IP65, Water Resistant
