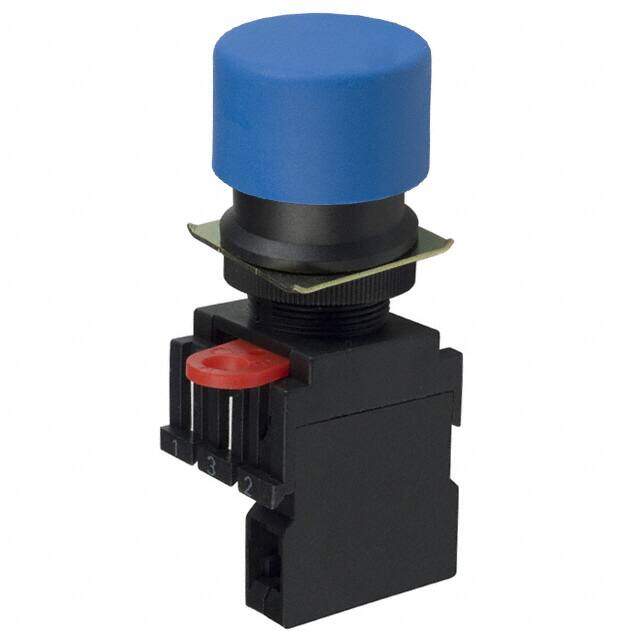

A22-SA-10M
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 10A 110V
PDF
/
Inventory: 8910
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Panel Mount, Front
Surface Mount NO
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 1998
Series A22
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Standard
Additional Feature Non-lighted (Round Type)
HTS Code 8536.50.70.00
Voltage - Rated DC 24V
Current Rating (Amps) 10A AC/DC
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Termination Style Screw Terminal
Voltage - Rated AC 110V
Body Length or Diameter 34mm
Body Breadth 30 mm
Actuator Type Round, Button, Mushroom
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 22.30mm Dia
Color - Actuator/Cap Blue
Electrical Life 500,000 Cycles
Mechanical Life 5,000,000 Cycles
Dimensions
Body Height 54.7mm
