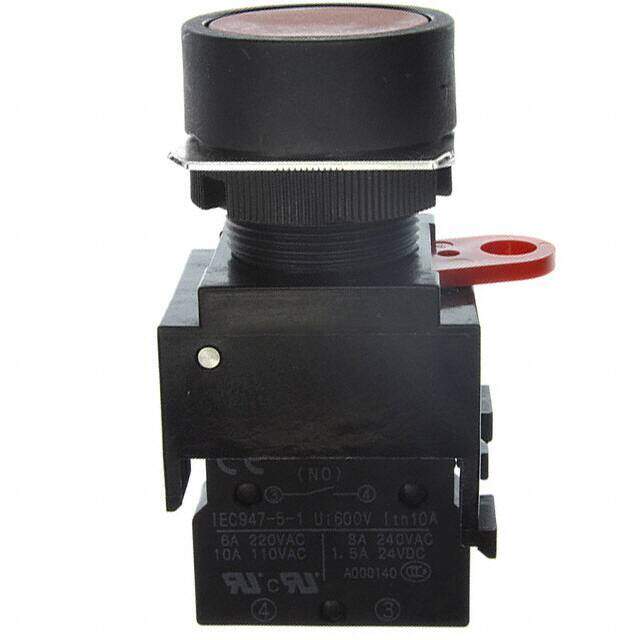

A22-FR-10A
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 10A 110V
PDF
/
Inventory: 7528
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -20°C~70°C
Packaging Bulk
Published 1998
Series A22
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Type Standard
Additional Feature Non-lighted (Round Type)
HTS Code 8536.50.70.00
Voltage - Rated DC 24V
Current Rating (Amps) 10A AC/DC
Ingress Protection IP65 - Dust Tight, Oil and Water Resistant
Reach Compliance Code unknown
Current Rating 10A
Termination Style Screw Terminal
Voltage - Rated AC 110V
Body Length or Diameter 36mm
Body Breadth 30 mm
Actuator Type Round, Button, Flush
Circuit SPST-NO
Switch Function Off-On
Panel Cutout Dimensions Circular - 22.30mm Dia
Color - Actuator/Cap Red
Electrical Life 500,000 Cycles
Throw Configuration SPST
Contact Current Rating 10mA
Dimensions
Body Height 54.7mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
