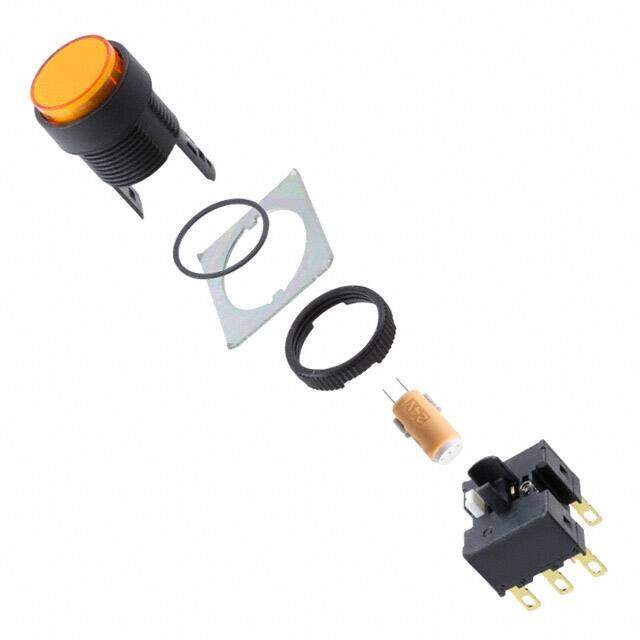

A16L-TYM-12D-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $22.94
Unit Price: USD $22.938989
≥1 USD $22.938989
≥200 USD $8.87783
≥500 USD $8.56536
≥1000 USD $8.41175
Inventory: 8683
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mounting Type Panel Mount, Front
Technical
Operating Temperature -10°C~55°C
Packaging Bulk
Published 2015
Series A16
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Standard, Illuminated
Current Rating (Amps) 5A AC
Ingress Protection IP40
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Color - Actuator/Cap Yellow
Illumination Voltage (Nominal) 12VDC
Illumination Type, Color LED, Yellow
Electrical Life 100,000 Cycles
Mechanical Life 2,000,000 Cycles
Compliance
RoHS Status RoHS Compliant
