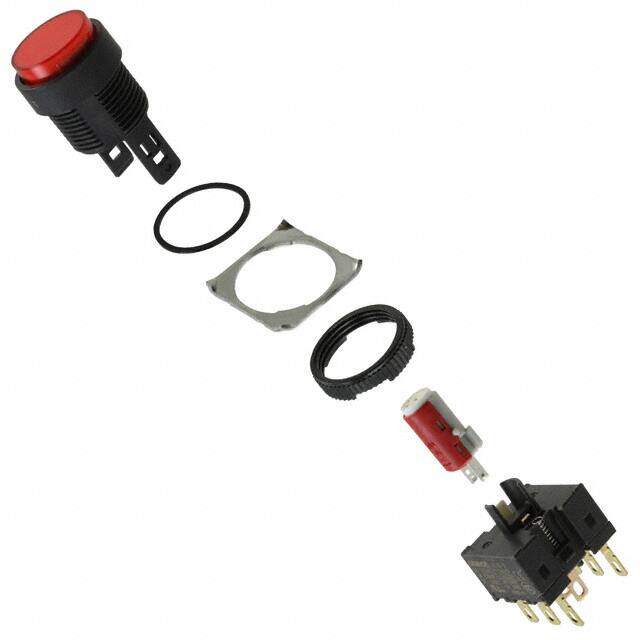

A16L-TRA-12D-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 5A 125V
PDF
/
Inventory: 965
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Body Height 21.1mm
Diameter 18mm
Technical
Operating Force-Max 4.41 N
Contact (DC) Max Rating R Load 3A@30VDC
Contact (AC) Max Rating R Load 5A@125VAC
Contact Current(AC)-Max 5A
Illumination Type LED
Contact Current Rating 15mA
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 12VDC
Contact Current(DC)-Max 3A
Color - Actuator/Cap Red
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Round, Button
Body Breadth 15.8 mm
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 5A
Reach Compliance Code unknown
Ingress Protection IP40
Orientation Vertical
Current Rating (Amps) 5A AC
Voltage - Rated DC 30V
HTS Code 8536.50.90.33
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series A16
Published 2015
Packaging Bulk
Operating Temperature -10°C~55°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 3 Weeks
