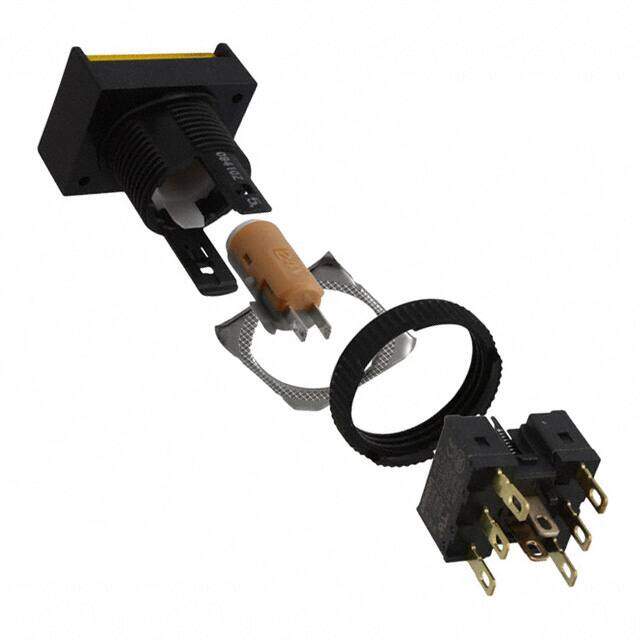

A16L-JYM-5D-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 5A 125V
PDF
/
Inventory: 6808
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 18mm
Length 24mm
Technical
Illumination Type LED
Contact Current Rating 30mA
Mechanical Life 2,000,000 Cycles
Electrical Life 100,000 Cycles
Illumination Type, Color LED, Yellow
Illumination Voltage (Nominal) 5VDC
Color - Actuator/Cap Yellow
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Rectangular, Button
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 5A
Reach Compliance Code unknown
Ingress Protection IP40
Orientation Vertical
Current Rating (Amps) 5A AC
Voltage - Rated DC 30V
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series A16
Published 2015
Packaging Bulk
Operating Temperature -10°C~55°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 3 Weeks
