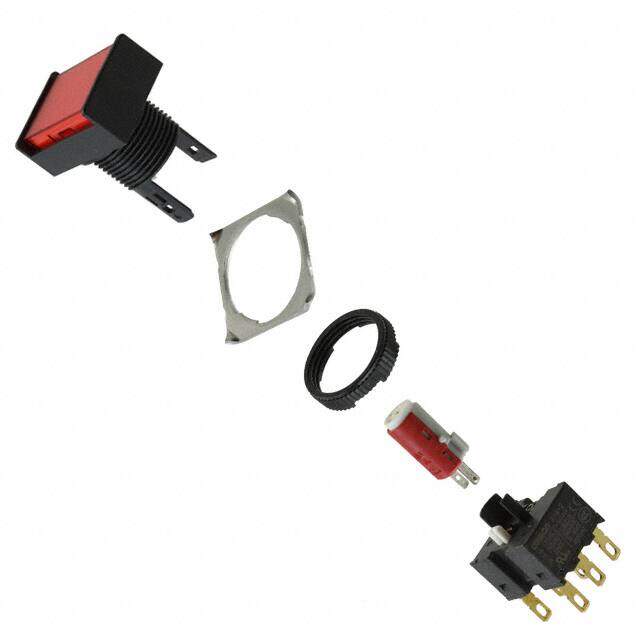

A16L-JRA-5-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 5A 125V
PDF
/
Inventory: 6582
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Color - Actuator/Cap Red
Contact Current(DC)-Max 3A
Illumination Voltage (Nominal) 5VAC/DC
Illumination Type, Color Incandescent, Red
Electrical Life 100,000 Cycles
Mechanical Life 200,000 Cycles
Contact Current Rating 30mA
Illumination Type LED
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@125VAC
Contact (DC) Max Rating R Load 3A@30VDC
Operating Force-Max 4.41 N
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Rectangular, Button
Body Breadth 15.8 mm
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 5A
Reach Compliance Code unknown
Ingress Protection IP40
Orientation Vertical
Current Rating (Amps) 5A AC
Voltage - Rated DC 30V
HTS Code 8536.50.90.33
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series A16
Published 2006
Packaging Bulk
Operating Temperature -10°C~55°C
Dimensions
Length 24mm
Width 18mm
Body Height 21.1mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 12 Weeks
