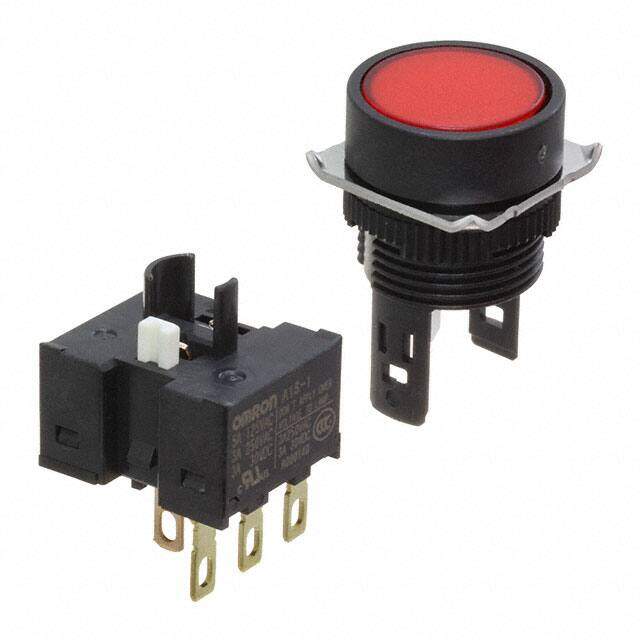

A16-TRM-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches SPDT MOM ROUND RED IP40
PDF
/
Buying Options
Total Price: USD $20.48
Unit Price: USD $20.478207
≥1 USD $20.478207
≥10 USD $19.319064
≥100 USD $18.225529
≥500 USD $17.193898
≥1000 USD $16.220653
Inventory: 1170
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount Front, Panel, Snap in
Mounting Type Panel Mount, Front
Body Material Polycarbonate, Resin
Technical
Operating Temperature -10°C~55°C
Packaging Bulk
Published 2008
Series A16
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Max Operating Temperature 55°C
Min Operating Temperature -10°C
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC
Orientation Vertical
Ingress Protection IP40
Depth 18mm
Current Rating 5A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Color - Actuator/Cap Red
Max Voltage Rating (AC) 250V
Max Current Rating 5A
Electrical Life 100,000 Cycles
Number of Poles 1
Throw Configuration SPDT
Max Voltage Rating (DC) 30V
Mechanical Life 2,000,000 Cycles
Contact Current Rating 3A
Illumination Color Red
Dimensions
Diameter 18mm
Length 18mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings IP40
