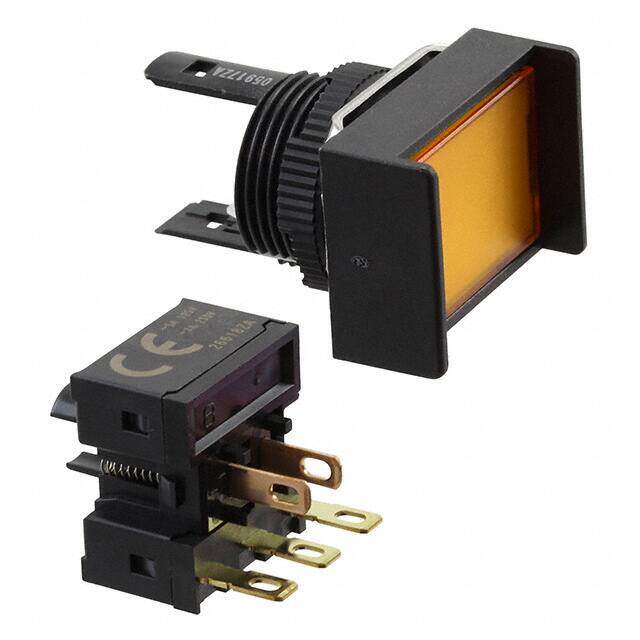

A16-JYM-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $24.83
Unit Price: USD $24.8336
≥1 USD $24.8336
≥10 USD $22.55704
≥100 USD $19.641952
Inventory: 83
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mounting Type Panel Mount, Front
Surface Mount NO
Technical
Operating Temperature -10°C~55°C
Packaging Bulk
Published 2015
Series A16
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Current Rating (Amps) 5A AC
Ingress Protection IP40
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Body Length or Diameter 18mm
Body Breadth 15.8 mm
Actuator Type Rectangular, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Color - Actuator/Cap Yellow
Contact Current(DC)-Max 3A
Contact Voltage(DC)-Max 30V
Electrical Life 100,000 Cycles
Mechanical Life 2,000,000 Cycles
Contact Current(AC)-Max 5A
Contact (DC) Max Rating R Load 3A@30VDC
Contact Voltage(AC)-Max 125V
Operating Force-Max 4.41 N
Dimensions
Body Height 21.1mm
Compliance
RoHS Status RoHS Compliant
