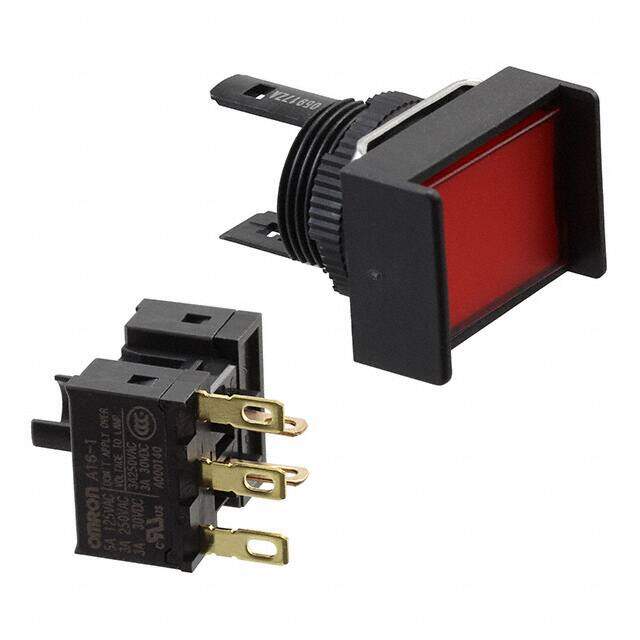

A16-JRM-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPDT MOM RECT RED IP40
PDF
/
Buying Options
Total Price: USD $26.94
Unit Price: USD $26.9368
≥1 USD $26.9368
≥10 USD $24.51504
≥100 USD $23.374912
≥500 USD $21.807104
≥1000 USD $20.951832
≥3000 USD $19.526566
Inventory: 77
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 3 Weeks
Physical
Mount Front, Panel
Mounting Type Panel Mount, Front
Technical
Operating Temperature -10°C~55°C
Packaging Bulk
Published 2001
Series A16
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
HTS Code 8536.50.90.31
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC
Orientation Vertical
Ingress Protection IP40
Reach Compliance Code unknown
Current Rating 5A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Body Breadth 15.8 mm
Actuator Type Rectangular, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Color - Actuator/Cap Red
Contact Current(DC)-Max 3A
Electrical Life 100,000 Cycles
Mechanical Life 2,000,000 Cycles
Contact Current Rating 3A
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@125VAC
Contact (DC) Max Rating R Load 3A@30VDC
Operating Force-Max 4.41 N
Dimensions
Length 24mm
Width 18mm
Body Height 21.1mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
