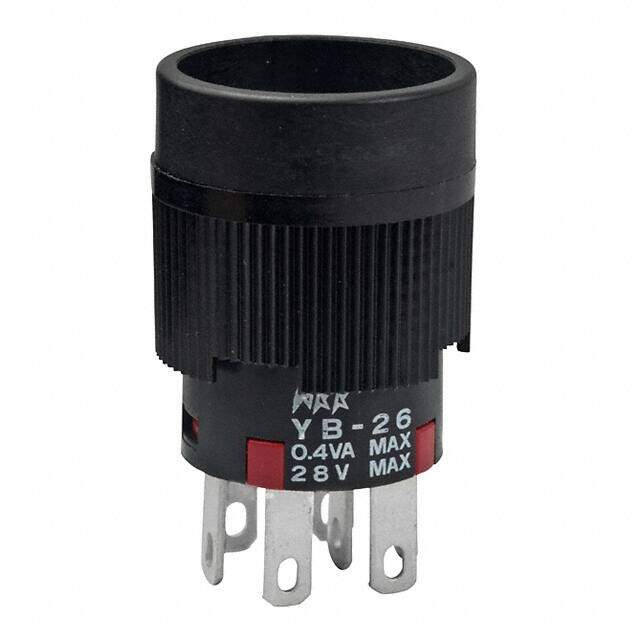

YB26CKG01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Inventory: 5377
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.347 inch
Body Height 7.5946mm
Technical
Life (Cycles) 200000 cycles
Bushing Length 0.37 inch
Actuator Travel 1.4986 mm
PCB Hole Count 8
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Insulation Resistance 200000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 28V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series YB
Published 2011
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Terminal Material PHOSPHOR BRONZE
Center Contact Material BRASS
Housing Material Polyamide
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 14 Weeks
