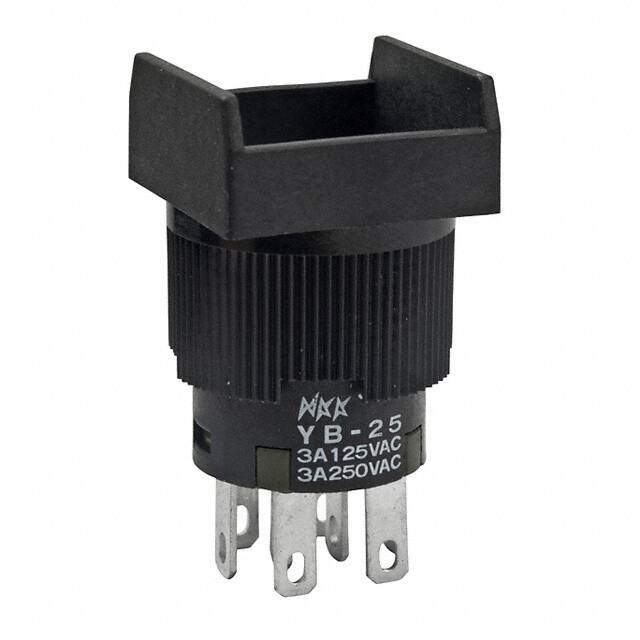

YB25SKW01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $12.6
Unit Price: USD $12.6016
≥1 USD $12.6016
≥10 USD $11.38544
≥100 USD $10.837024
≥500 USD $10.289136
≥1000 USD $9.923936
≥3000 USD $9.315082
Inventory: 137
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.327 inch
Body Height 7.5946mm
Technical
Bushing Diameter 0.629 inch
Bushing Length 0.37 inch
Actuator Travel 1.4986 mm
Contact Function ON-(ON)
PCB Hole Count 8
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 3A@250VAC
Contact Current(AC)-Max 3A
Mechanical Life 1,000,000 Cycles
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Contact Current(DC)-Max 3A
Insulation Resistance 200000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit DPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series YB
Published 2011
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
End Contact Plating GOLD
Terminal Material PHOSPHOR BRONZE
Center Contact Material SILVER ALLOY
Center Contact Plating SILVER
Housing Material GLASS FILLED POLYAMIDE
Insulation Material DIALLYL PHTHALATE
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 5 Weeks
