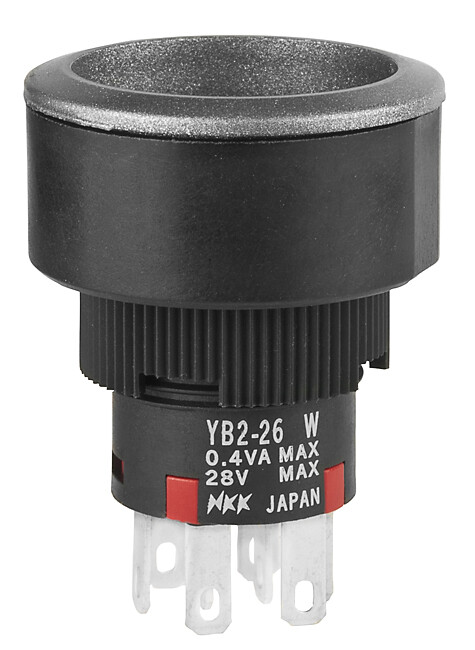

YB226CWCSG01 image
Favorite
YB226CWCSG01 image
Favorite

YB226CWCSG01

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description STD SIZE PUSHBUTTON/ILLUMINATED/
PDF
/
Inventory: 3301
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 19 Weeks

Physical

Mounting Type Panel Mount, Front
Surface Mount NO
Insulation Material DIALLYL PHTHALATE
Housing Material GLASS FILLED POLYAMIDE
Center Contact Plating GOLD
Terminal Material PHOSPHOR BRONZE
End Contact Plating GOLD

Technical

Operating Temperature -25°C~70°C
Packaging Bulk
Published 2011
Series YB2
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Standard
Current Rating (Amps) 0.4VA AC/DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 22.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 200000000Ohm
Electrical Life 100,000 Cycles
Mechanical Life 200,000 Cycles
Actuator Color SILVER
Actuator Travel 2.9972 mm
Solderability HAND

Dimensions

Length - Termination 0.288 inch

Compliance

RoHS Status ROHS3 Compliant
