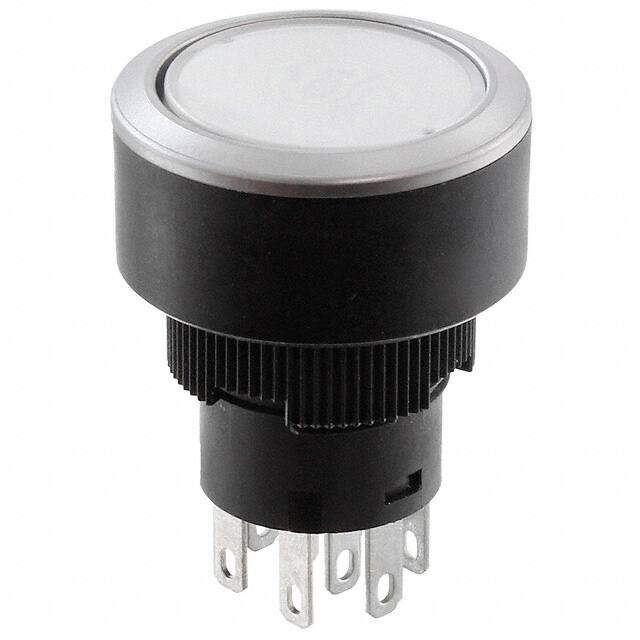

YB226CWCPW01-5D-JS
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $32.34
Unit Price: USD $32.34
≥1 USD $32.34
≥10 USD $29.42808
≥100 USD $25.15084
Inventory: 44
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Technical
Illumination Color Orange
Illumination Type LED
Contact Current Rating 3A
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Illumination Type, Color LED, Amber
Illumination Voltage (Nominal) 2VDC
Color - Actuator/Cap Silver
Panel Cutout Dimensions Circular - 22.00mm Dia
Switch Function On-On
Circuit DPDT
Actuator Type Round, Button, Flush
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Type Standard, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series YB2
Published 2012
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 14 Weeks
