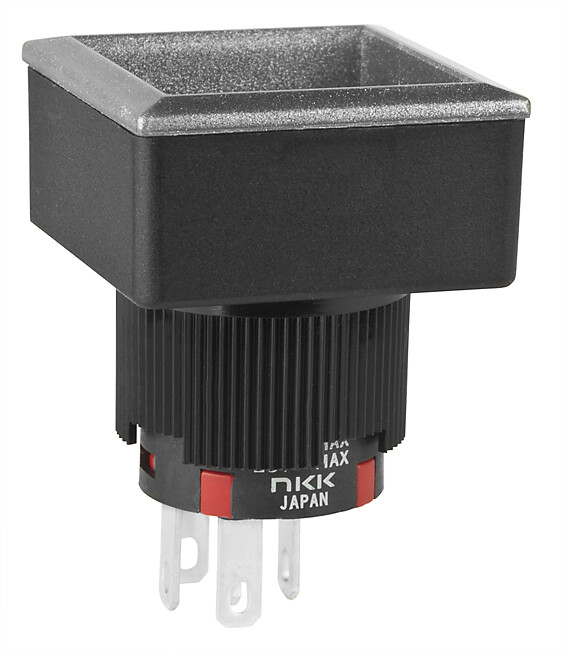

YB215CWSSG01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SPDT ON-(ON) PANEL SEAL SQUARE S
PDF
/
Inventory: 1731
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mounting Type Panel Mount, Front
Surface Mount NO
Insulation Material DIALLYL PHTHALATE
Housing Material GLASS FILLED POLYAMIDE
Center Contact Plating GOLD
Terminal Material PHOSPHOR BRONZE
End Contact Plating GOLD
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2011
Series YB2
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Standard
Current Rating (Amps) 0.4VA AC/DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Square - 21.00mm2
Contact Resistance 0.05mOhm
Insulation Resistance 200000000Ohm
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Actuator Color SILVER
Contact Function ON-(ON)
Actuator Travel 2.9972 mm
Solderability HAND
Dimensions
Length - Termination 0.288 inch
Compliance
RoHS Status ROHS3 Compliant
