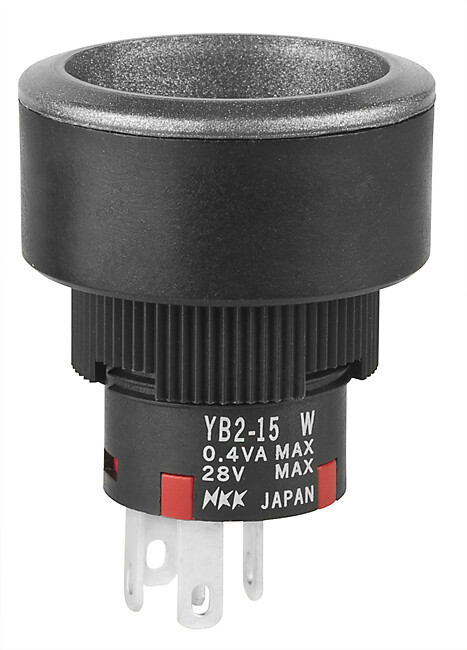

YB215CWCSG01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches Series YB2 Non-Illum Pushbutton
PDF
/
Inventory: 7971
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings IP65
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.288 inch
Technical
Solderability HAND
Actuator Travel 2.9972 mm
Contact Function ON-(ON)
Actuator Color SILVER
Mechanical Life 1,000,000 Cycles
Electrical Life 100,000 Cycles
Insulation Resistance 200000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 22.00mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 28V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Ingress Protection IP65 - Dust Tight, Water Resistant
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series YB2
Published 2011
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Terminal Material PHOSPHOR BRONZE
Housing Material Polyamide
Surface Mount NO
Mounting Type Panel Mount, Front
Contact Plating Gold
Supply Chain
Factory Lead Time 19 Weeks
