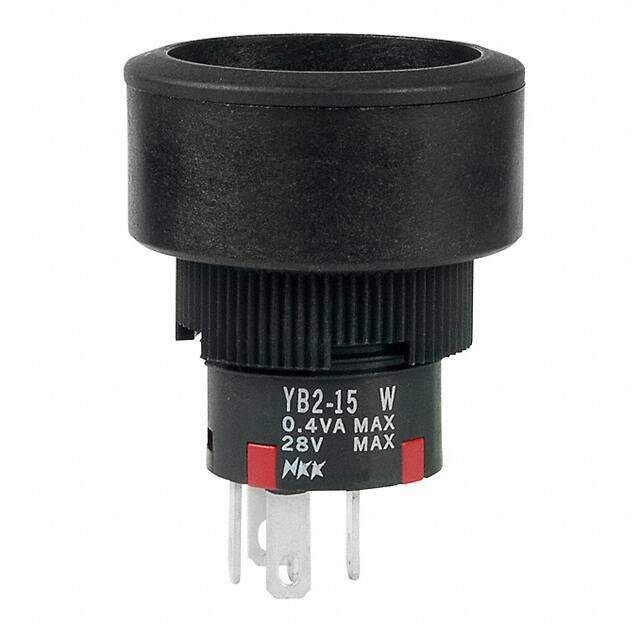

YB215CWCKG01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $20.56
Unit Price: USD $20.5568
≥1 USD $20.5568
≥10 USD $18.66832
≥100 USD $17.829504
≥500 USD $16.88544
≥1000 USD $16.256152
≥3000 USD $15.207386
Inventory: 24
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Gold
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Polyamide
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2011
Series YB2
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 22.00mm Dia
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Life (Cycles) 1e+06 cycles
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP65, Water Resistant
