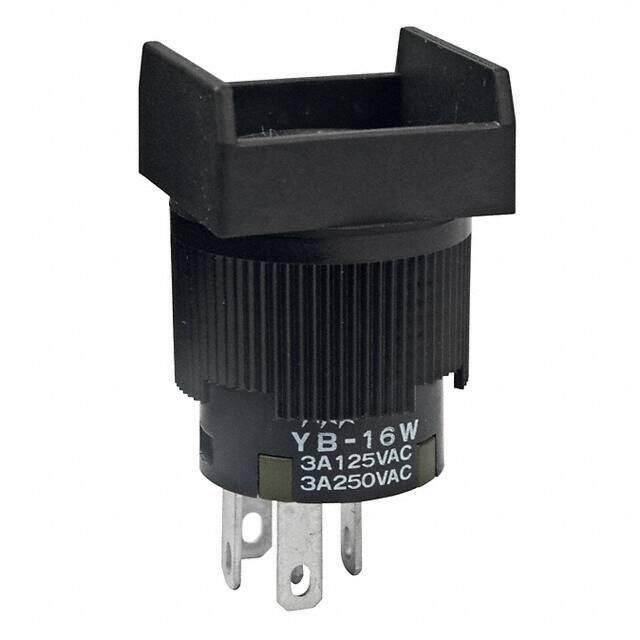

YB16WSKW01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $13.62
Unit Price: USD $13.6224
≥1 USD $13.6224
≥10 USD $12.21264
≥100 USD $11.676192
≥500 USD $11.07216
≥1000 USD $10.66956
≥3000 USD $9.99856
Inventory: 94
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.327 inch
Body Height 7.5946mm
Technical
Life (Cycles) 100000 cycles
Bushing Length 0.37 inch
Actuator Travel 1.4986 mm
PCB Hole Count 5
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 3A@250VAC
Contact Current(AC)-Max 3A
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Contact Current(DC)-Max 3A
Insulation Resistance 200000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Ingress Protection IP65 - Dust Tight, Water Resistant
Orientation Vertical
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series YB
Published 2011
Packaging Tray
Operating Temperature -25°C~70°C
Physical
Terminal Material PHOSPHOR BRONZE
Housing Material Polyamide
Mounting Type Panel Mount, Front
Mount Bushing, Front, Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
