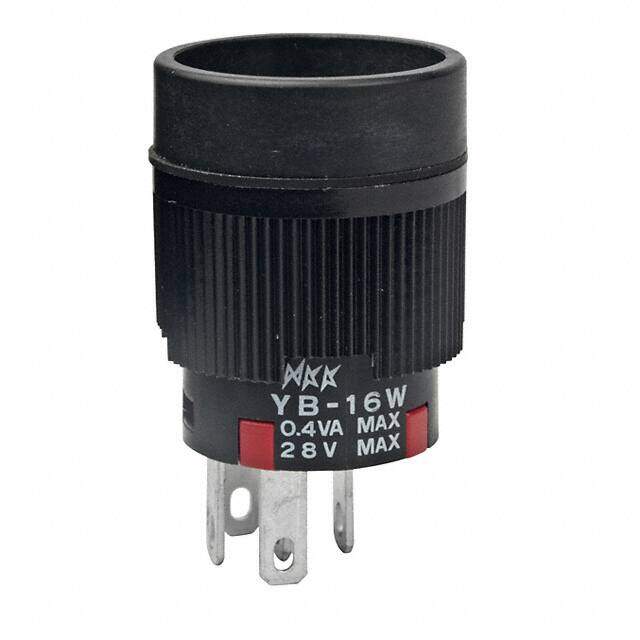

YB16WCKG01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $12.03
Unit Price: USD $12.0296
≥1 USD $12.0296
≥10 USD $10.86976
≥100 USD $10.346688
≥500 USD $9.823616
≥1000 USD $9.474784
≥3000 USD $8.893526
Inventory: 91
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Gold
Mount Bushing, Front, Panel
Mounting Type Panel Mount, Front
Housing Material Polyamide
Center Contact Material BRASS
Terminal Material PHOSPHOR BRONZE
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2011
Series YB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Ingress Protection IP65 - Dust Tight, Water Resistant
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.1mOhm
Insulation Resistance 200000000Ohm
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 100,000 Cycles
Mechanical Life 200,000 Cycles
PCB Hole Count 5
Actuator Travel 1.4986 mm
Bushing Length 0.37 inch
Life (Cycles) 100000 cycles
Dimensions
Body Height 7.5946mm
Actuator Length 0.347 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
Ratings Dust Tight, IP65, Water Resistant
