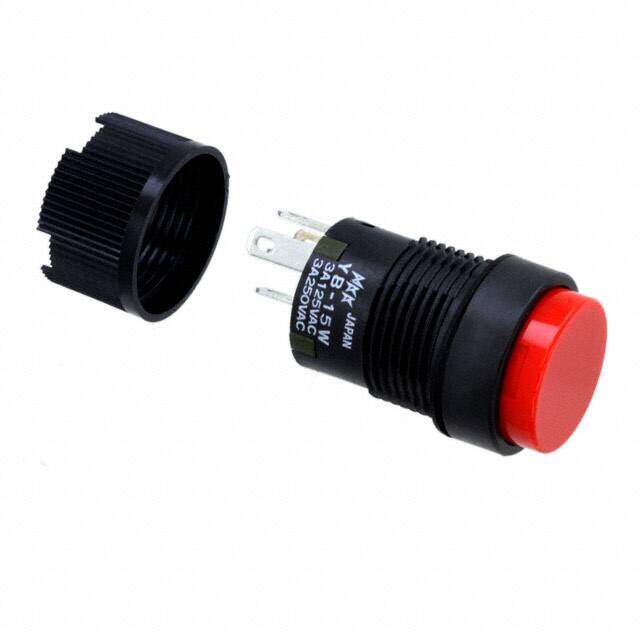

YB15WCKW01-CB
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
Pushbutton Switches SPDT ON-(ON) RED RND SILVER W/ PANEL SEAL
PDF
/
Buying Options
Total Price: USD $15.12
Unit Price: USD $15.1184
≥1 USD $15.1184
≥10 USD $13.55552
≥100 USD $12.959936
≥500 USD $12.28942
≥1000 USD $11.8426
≥3000 USD $11.097715
Inventory: 26
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Technical
Contact Current Rating 3A
Mechanical Life 1,000,000 Cycles
Electrical Life 100,000 Cycles
Color - Actuator/Cap Red (White Filter/Diffuser)
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Ingress Protection IP65 - Dust Tight, Water Resistant
Orientation Vertical
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series YB
Published 2006
Packaging Tray
Operating Temperature -25°C~70°C
Physical
Housing Material Polyamide
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 14 Weeks
