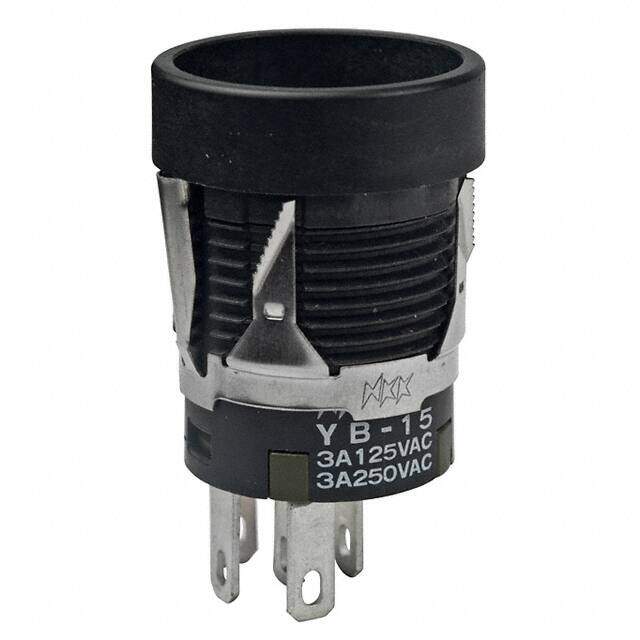

YB15MKW01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $11.22
Unit Price: USD $11.22
≥1 USD $11.22
≥10 USD $10.13848
≥100 USD $9.650432
≥500 USD $9.16256
≥1000 USD $8.837312
≥3000 USD $8.295162
Inventory: 93
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Polyamide
Terminal Material PHOSPHOR BRONZE
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2011
Series YB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 3A AC/DC
Current Rating 3A
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 200000000Ohm
Contact Current(DC)-Max 3A
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@250VAC
Contact Voltage(AC)-Max 250V
PCB Hole Count 5
Contact Function ON-(ON)
Actuator Travel 1.4986 mm
Bushing Length 0.37 inch
Life (Cycles) 1e+06 cycles
Dimensions
Body Height 7.5946mm
Actuator Length 0.347 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
