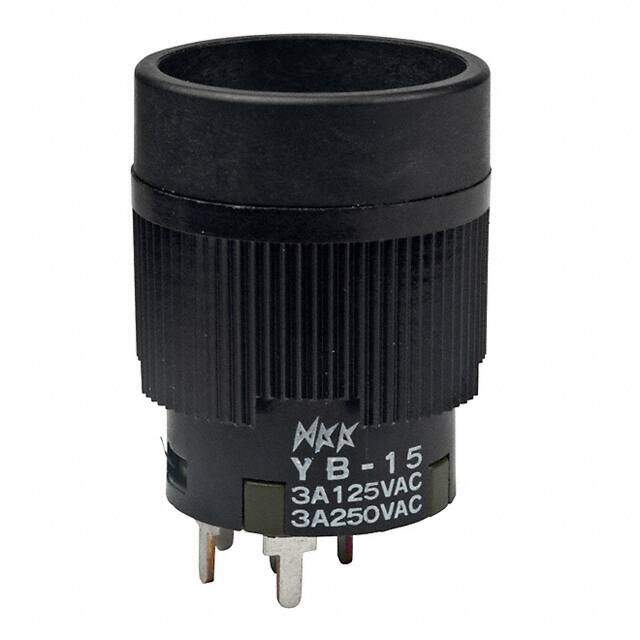

YB15CKW03
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $9.61
Unit Price: USD $9.6096
≥1 USD $9.6096
≥10 USD $8.65744
≥100 USD $8.295232
≥500 USD $7.887264
≥1000 USD $7.569936
≥3000 USD $7.11663
Inventory: 115
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Polyamide
Terminal Material PHOSPHOR BRONZE
Technical
Operating Temperature -25°C~70°C
Packaging Bulk
Published 2011
Series YB
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pin
Type Standard
Voltage - Rated DC 30V
Current Rating (Amps) 3A AC/DC
Current Rating 3A
Termination Style PC Pin
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 16.00mm Dia
Contact Resistance 0.05mOhm
Insulation Resistance 200000000Ohm
Contact Current(DC)-Max 3A
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 100,000 Cycles
Mechanical Life 1,000,000 Cycles
Contact Current(AC)-Max 3A
Contact (AC) Max Rating R Load 3A@250VAC
Contact Voltage(AC)-Max 250V
PCB Hole Count 5
Contact Function ON-(ON)
Actuator Travel 1.4986 mm
Bushing Length 0.37 inch
Life (Cycles) 1e+06 cycles
Dimensions
Body Height 10.5156mm
Actuator Length 0.347 inch
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
