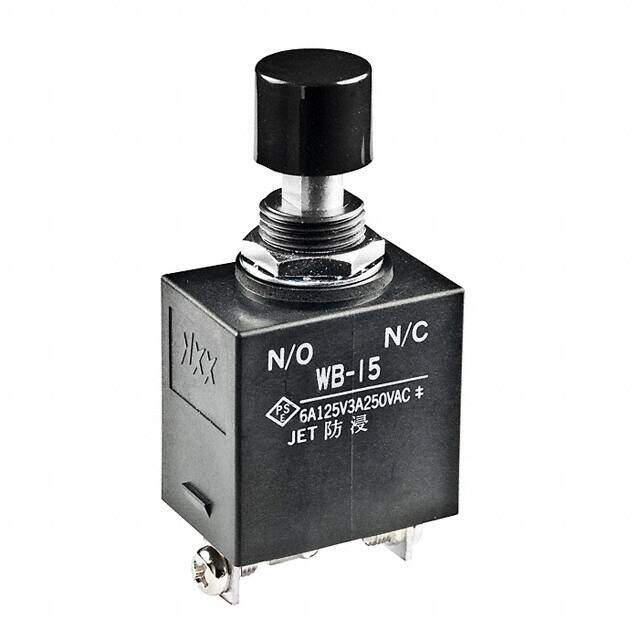

WB15T-DA  image
Favorite
WB15T-DA  image
Favorite

WB15T-DA

NKK Switches
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Inventory: 4167
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC

Dimensions

Width 19.4mm
Length 28.8mm

Technical

Contact Current Rating 6A
Mechanical Life 30,000 Cycles
Number of Poles 1
Electrical Life 15,000 Cycles
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 12.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Screw Terminal
Current Rating 6A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Vertical
Current Rating (Amps) 6A AC/DC
Voltage - Rated DC 30V
Number of Positions 2
Type Standard
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series WB
Published 2010
Packaging Bulk
Operating Temperature -30°C~70°C

Physical

Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Silver
Contact Material Copper

Supply Chain

Factory Lead Time 9 Weeks
