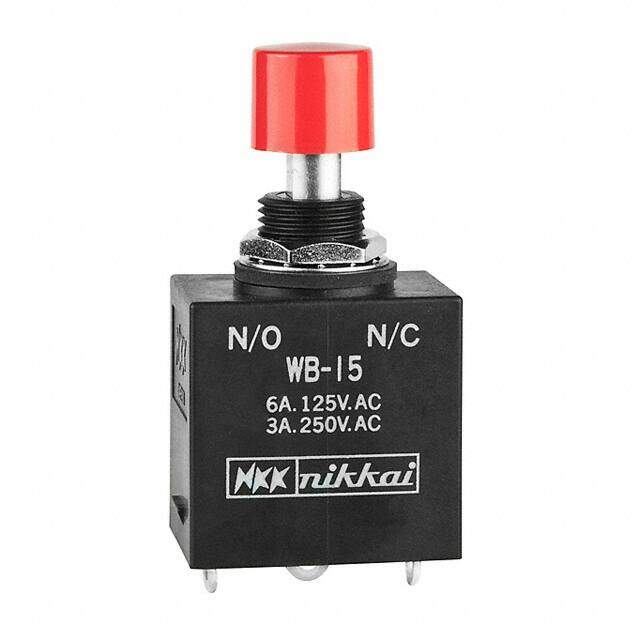

WB15S-DC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Buying Options
Total Price: USD $21.34
Unit Price: USD $21.34
≥1 USD $21.34
≥10 USD $19.38024
≥100 USD $18.509216
≥500 USD $17.529424
≥1000 USD $16.876112
≥3000 USD $15.787306
Inventory: 46
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
RoHS Status ROHS3 Compliant
Technical
Contact Current Rating 6A
Mechanical Life 30,000 Cycles
Electrical Life 15,000 Cycles
Color - Actuator/Cap Red
Panel Cutout Dimensions Circular - 12.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 6A
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating (Amps) 6A AC/DC
Voltage - Rated DC 30V
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series WB
Published 2008
Packaging Bulk
Operating Temperature -30°C~70°C
Physical
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
