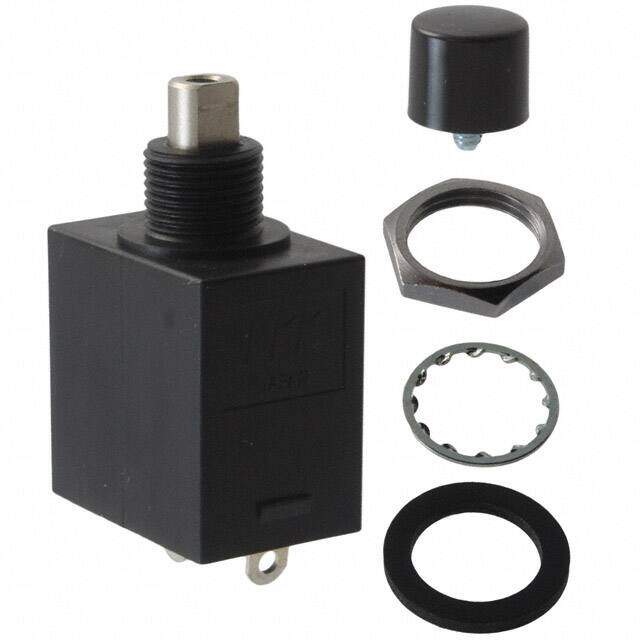

WB12S-DA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 6A 125V
PDF
/
Inventory: 8292
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Ratings Dust Tight, IP67, Waterproof
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 19.4mm
Length 28.8mm
Technical
Contact Current Rating 6A
Mechanical Life 30,000 Cycles
Number of Poles 1
Electrical Life 15,000 Cycles
Color - Actuator/Cap Black
Panel Cutout Dimensions Circular - 12.50mm Dia
Switch Function On-On
Circuit SPDT
Actuator Type Round, Button
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 6A
Ingress Protection IP67 - Dust Tight, Waterproof
Orientation Vertical
Current Rating (Amps) 6A AC/DC
Voltage - Rated DC 30V
Terminal Finish Tin (Sn)
Number of Positions 2
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e3
Series WB
Published 2010
Packaging Bulk
Operating Temperature -30°C~70°C
Physical
Housing Material Polyamide
Mounting Type Panel Mount, Rear
Mount Panel
Contact Plating Silver
Contact Material Copper
Supply Chain
Factory Lead Time 9 Weeks
