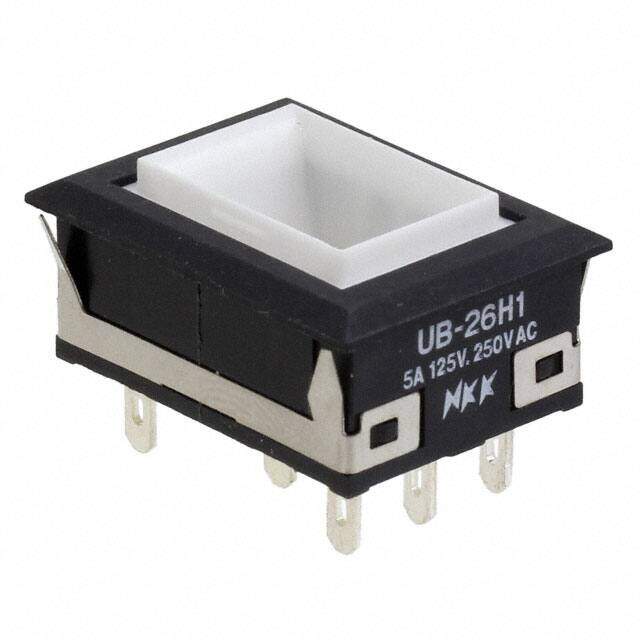

UB26NKW015D
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
Illuminated Pushbutton Switches RECT ON-ON AMBER LED SOLDER LUG BODY ONLY
PDF
/
Buying Options
Total Price: USD $12.03
Unit Price: USD $12.0296
≥1 USD $12.0296
≥10 USD $10.86976
≥100 USD $10.346688
≥500 USD $9.823616
≥1000 USD $9.474784
≥3000 USD $8.893526
Inventory: 95
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Technical
Illumination Color Orange
Illumination Type LED
Mechanical Life 200,000 Cycles
Electrical Life 10,000 Cycles
Illumination Type, Color LED, Amber
Illumination Voltage (Nominal) 2VDC
Panel Cutout Dimensions Rectangular - 22.40mm x 16.20mm
Switch Function On-On
Circuit DPDT
Actuator Type Plunger for Cap
Voltage - Rated AC 125V
Termination Style Solder Lug
Current Rating 5A
Current Rating (Amps) 5A AC/DC
Voltage - Rated DC 30V
Type Standard, Illuminated
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
Series UB
Published 2011
Packaging Bulk
Operating Temperature -25°C~50°C
Physical
Housing Material Polyamide
Package / Case 125
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Silver
Supply Chain
Factory Lead Time 11 Weeks
