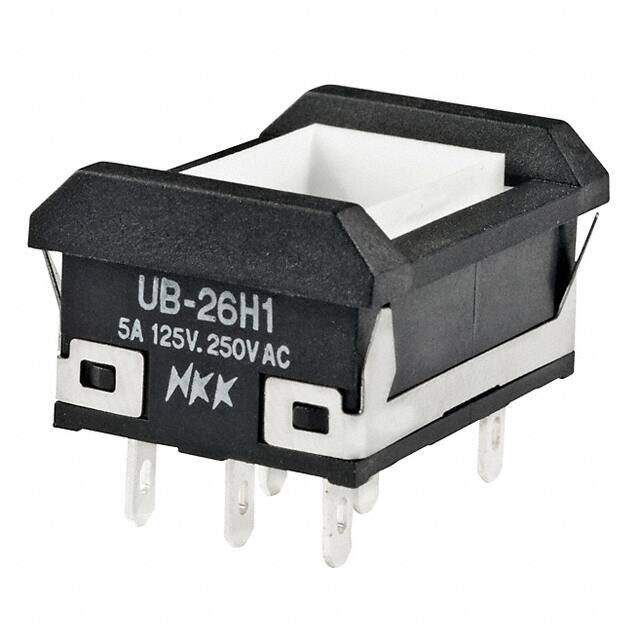

UB26NBKW015C
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $12.42
Unit Price: USD $12.4168
≥1 USD $12.4168
≥10 USD $11.21912
≥100 USD $10.678976
≥500 USD $10.139008
≥1000 USD $9.779
≥3000 USD $9.179069
Inventory: 56
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Plating Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Package / Case 125
Technical
Operating Temperature -25°C~50°C
Packaging Bulk
Published 2011
Series UB
Feature With Barrier
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Voltage - Rated DC 30V
Current Rating (Amps) 5A AC/DC
Current Rating 5A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Rectangular - 22.40mm x 16.20mm
Illumination Voltage (Nominal) 1.85VDC
Illumination Type, Color LED, Red
Electrical Life 10,000 Cycles
Throw Configuration DPDT, SPDT
Mechanical Life 200,000 Cycles
Illumination Type Illuminated, LED
Illumination Color Red
Compliance
RoHS Status ROHS3 Compliant
