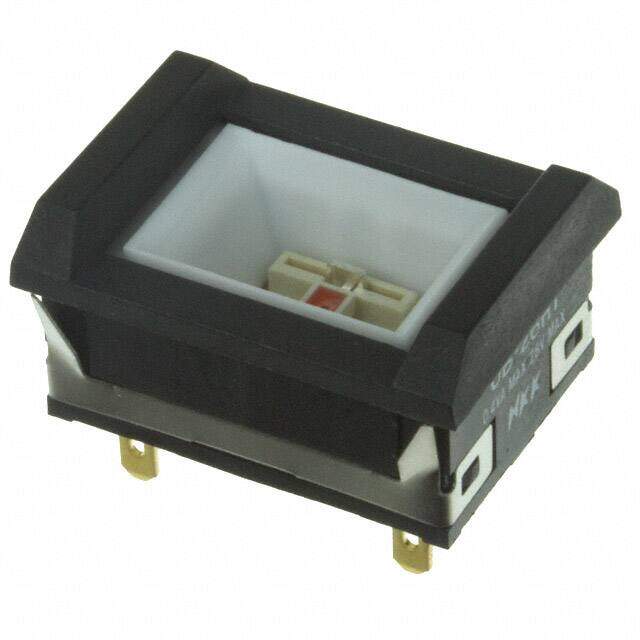

UB26NBKG015C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH DPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $12.72
Unit Price: USD $12.716
≥1 USD $12.716
≥10 USD $11.40392
≥100 USD $10.902848
≥500 USD $10.338944
≥1000 USD $9.963008
≥3000 USD $9.336413
Inventory: 33
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Plating Gold
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Housing Material Polyamide
Technical
Operating Temperature -25°C~50°C
Packaging Bulk
Published 2009
Series UB
Feature With Barrier
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard, Illuminated
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 0.4VA AC/DC
Reach Compliance Code unknown
Termination Style Solder Lug
Voltage - Rated AC 28V
Actuator Type Plunger for Cap
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Rectangular - 22.40mm x 16.20mm
Illumination Voltage (Nominal) 1.85VDC
Illumination Type, Color LED, Red
Electrical Life 200,000 Cycles
Mechanical Life 200,000 Cycles
Illumination Type LED
Illumination Color Red
Compliance
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
